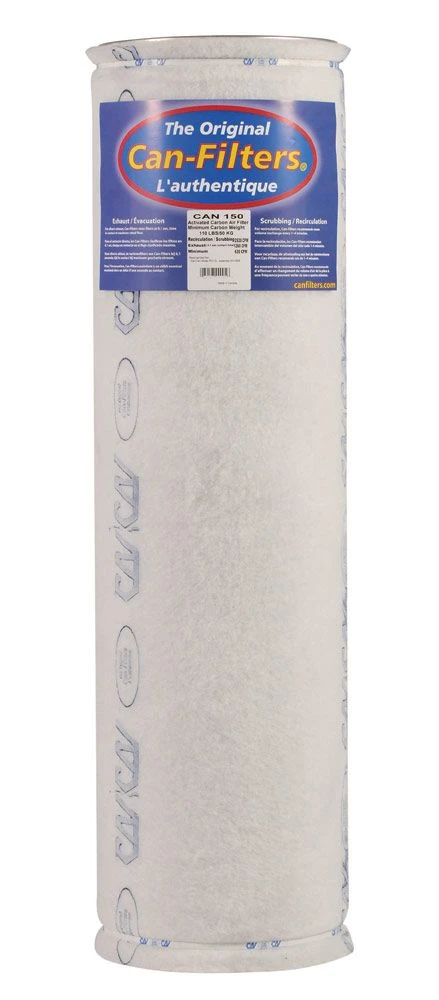

Can-Filter 150 1260CFM

With over 20 years experience specializing in activated carbon odor control, Can-Filters designs and builds only the highest quality Activated Carbon air filter, using only Virgin Activated Carbon specially formulated to meet your job criteria.

• Can-Filters provide one of Nature’s BEST odor control materials, ACTIVATED CARBON. The CKV-4 (carbon type) is specially developed for this purpose.
• Controlled grain size and a large surface area give full rated airflow and more than 99% odor removal.
• Carbon bed thickness is 2.5″ – More carbon means more absorption!
• Can-Filters packed bed design means no settling and no preferential channels for consistent performance and long life.



CAN FILTER 150
Max CFM:	1260 cfm (non-recirculating)
Min CFM:	630 cfm
Dimensions: (with pre-filter)	·Outside Diameter: 420mm/16.5″ ·Height: 1500mm/60″ ·Total Weight: 71kg/156lbs ·Carbon Weight: 56kg/123lbs ·Carbon Bed Depth: 65mm/2.56″
Max Operating Temp:	176º F / 80ºC
Pressure drop at max CFM:	180pa/ .75wg
Flange:*	10″ or 12″



Recommended Can-Fan:

FAN                               Watts Consumed          Filtered Air CFM
Can-Fan 12″ HO           365 max watts                 898 CFM

MAX-Fan 10″               142 max watts                 907 CFM

How to choose a CAN Filter/Fan combination that is right for your grow room in 4 easy steps:

1. Determine the volume of the grow room by multiplying LxWxH (e.g. 10′ x 10′ x 8′ = 800 cubic feet).
2. Choose a Can-Fan that will clear the room in 1-2 minutes (e.g. 400-800 CFM fan for an 800 cubic foot room).
3. Choose a Can-Fan that is compatible with the fan you chose in the previous step; it will be listed in the “Recommended Can-Fan” section of the filter description (in many cases there will be more than one filter that is compatible with the fan you chose).
4. Finally, choose a Can Flange that matches the Can-Fan you chose (e.g. 6″ Can-Fan requires a 6″ Can Flange).

* Choice of flange size; sold separately.
