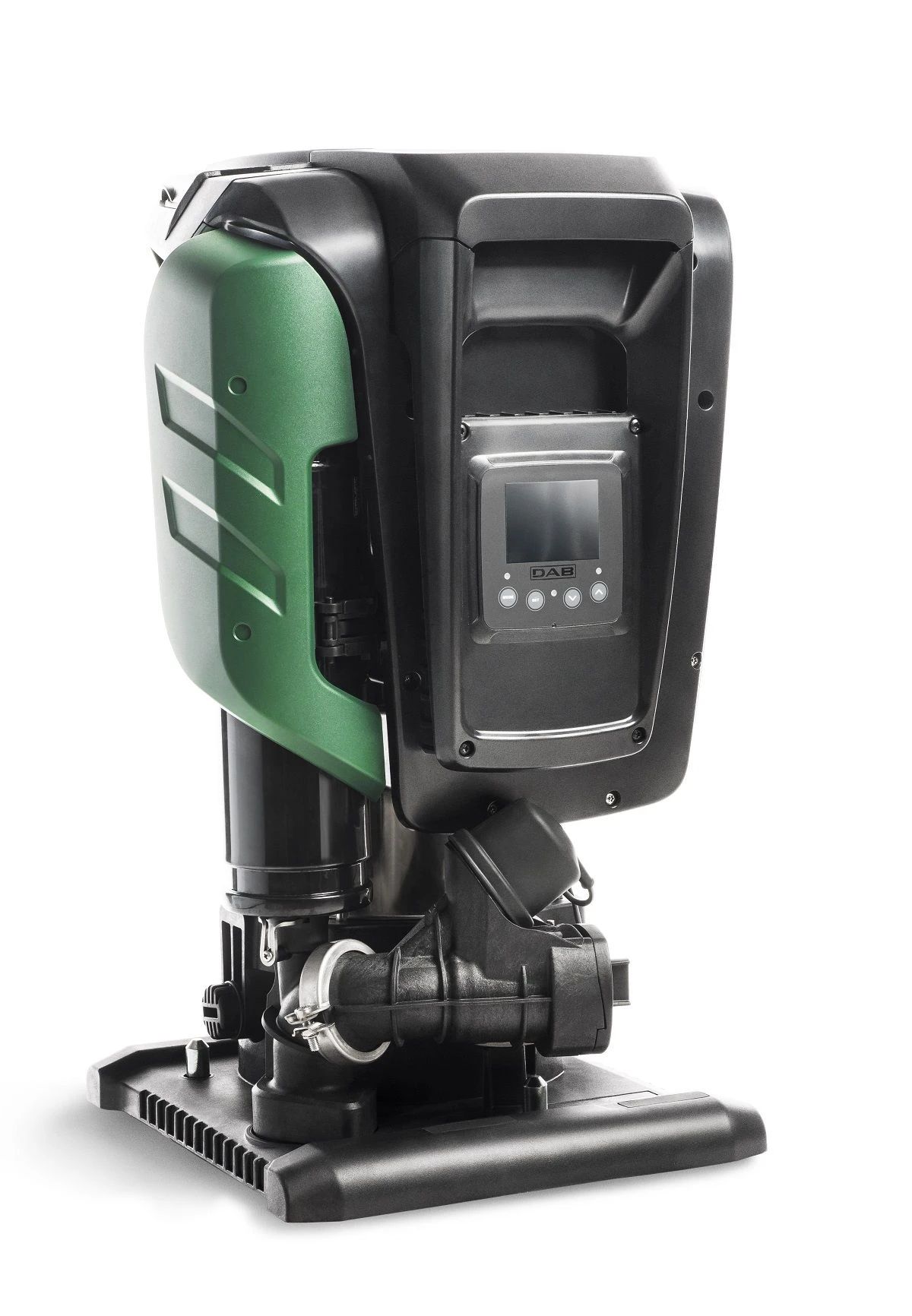

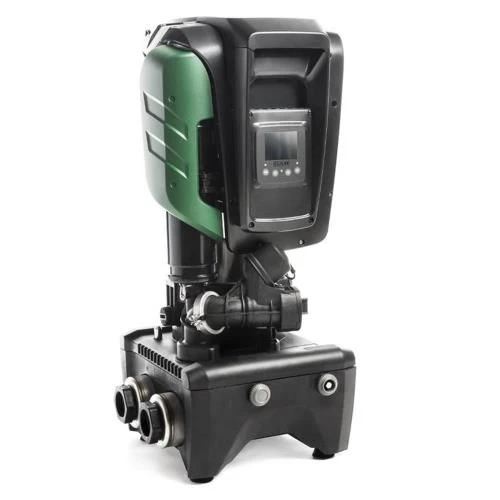

DAB ESYBOX MAX Electronic Water Pressure System – 85/120 T 380-480V

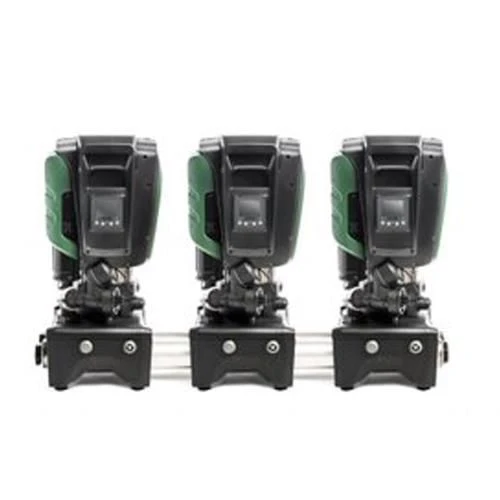

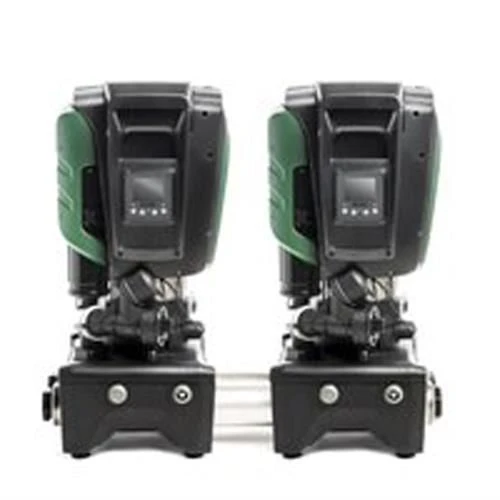

Esybox Max by Dab Pumps is an integrated water booster pumping system for water pressurization in Commercial Irrigation applications. Available in two power sizes, the Esybox Max consists of modular elements that allow different configurations to cover the needs of the application. Use the DAB ESYDOCK double and triple, to combined multiple pumps into a single pump system.

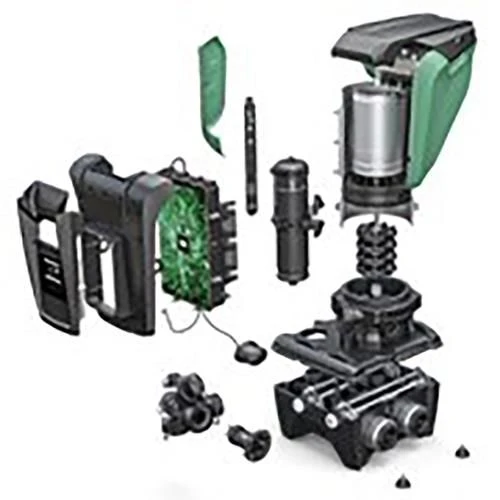

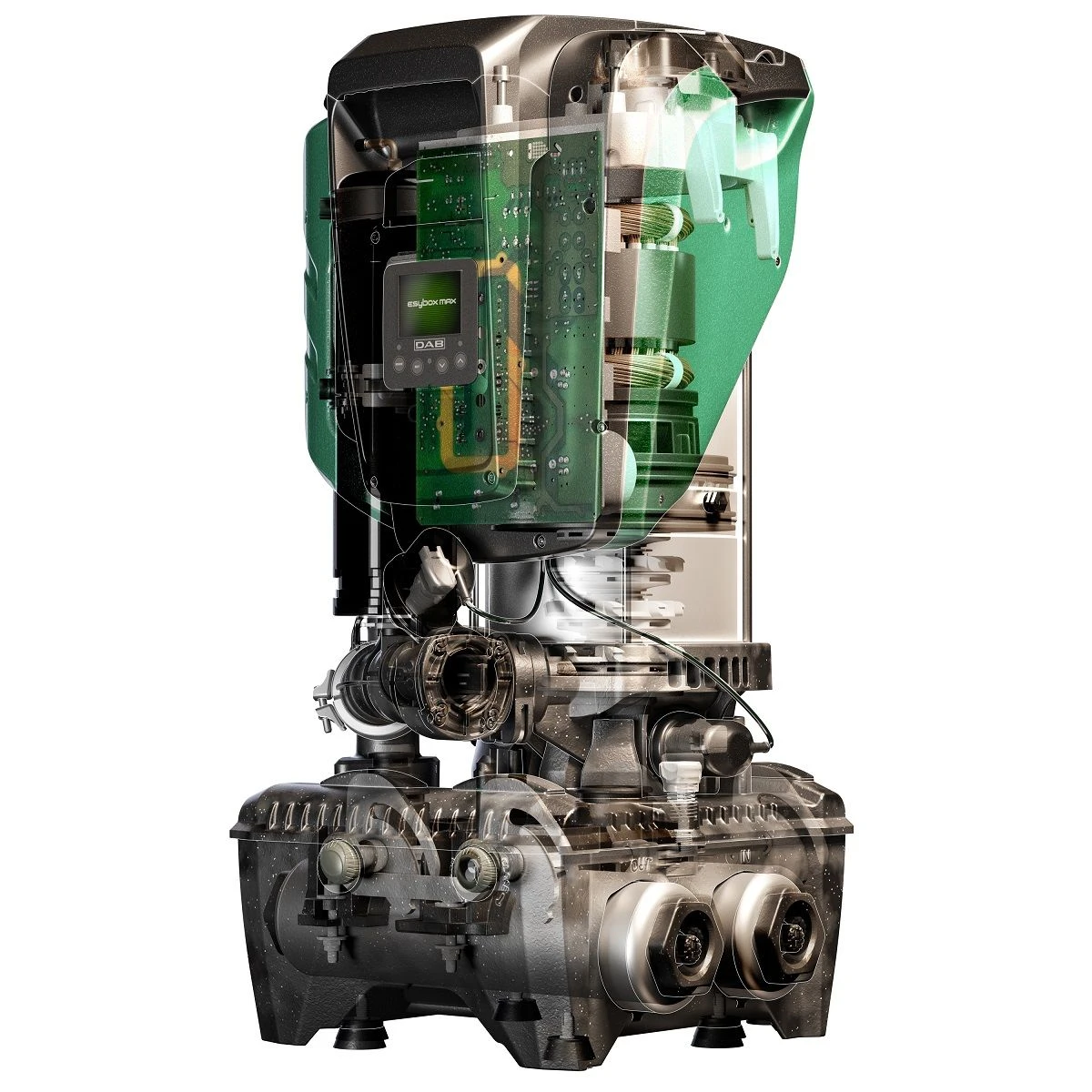

• Electronic vertical multi-impeller pump, with display, pressure sensors on intake and delivery, non-return valve on delivery and an integrated expansion
  tank. Pump body and impellers in technopolymer with steel jacket.
• Water-cooled permanent magnet motor, stainless steel motor jacket. Motor shaft in AISI 303 stainless steel.
• The variable frequency drive keeps the pressure constant by varying the number of motor revolutions according to the request.
  The expansion module (esy I/O, available as an accessory) makes it possible to interface Esybox Max with the other elements of the system (BMS).
  Integrated protections: protection from dry running, amperometric and abnormal voltages, overheating, freezing, anti-blocking and anti-cycling.
• Esybox Max is the most compact and integrated booster set available on the market compared with any traditional solution.

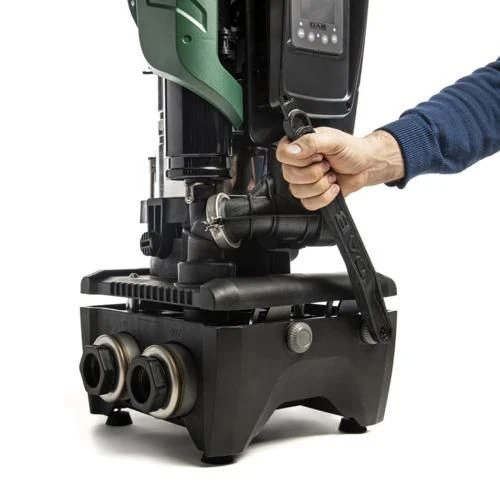

***DAB ESYBOX MAX REQUIRES A DOCKING STATION, SELECT FROM SINGLE, DOUBLE OR TRIPLE***​​​​​​​

Certification:
CSA C22.2 No. 108-14- 5th Ed. – Liquid Pumps.
UL 778 6th Ed. – Motor Operated Water Pumps
NSF 61 Drinking Water
NSF 372 Drinking Water – Low Lead Content
