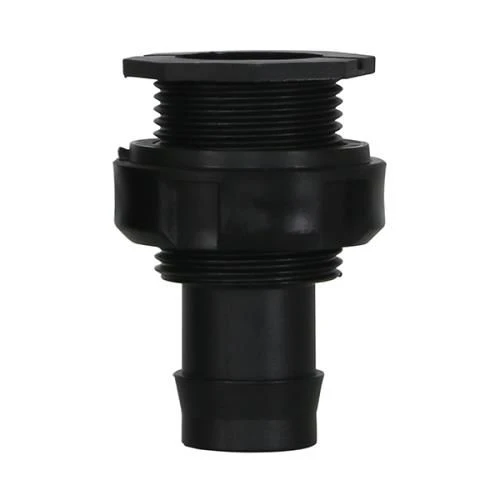

Ebb & Flow Barbed Fitting 1in

These custom, poly-injection formed, ebb & flow fittings are designed to be used with feed and drain watering systems.

Outlets are available in 1/2″ (13 mm), 3/4″ (19 mm) and 1″ (25 mm) openings. Optional multi-level, overflow extensions and debris screens are available and easily installed into the outlets.

• Interior threads accept 3/4″ standard pipe thread.
• Use as ebb and flow fittings or bulkhead fittings.
• Increased versatility: thread pvc pipe fittings into bulkhead fittings- ideal for use in aeroponic and drip applications.
• Superior quality & competitively priced.

These fittings require a 1-3/8″ (35 mm) hole to be drilled in your flood tray. After inserting the 1/2″ Bulkhead Fitting into the tray, use 1/2″ tubing to connect to your water pump. Install the 3/4″ Bulkhead Fitting in the tray and attach the Bulkhead Extensions to maintain the desired water level in the flood tray while the water pump is running. Attach the Bulkhead Screens to the top of both fittings to prevent debris from entering the reservoir and to prevent water from shooting out and splashing when the pump is on.

Available Sizes:

• 1/2″ (13 mm)
• 3/4″ (19 mm)
• 1″ (25 mm)
