Excel Air XL Series Air Cooling Systems

The XL Series is our flagship product and is based on a Split System Design. This system has the Plug and Play feature which allows you to install the system without the need of a certified installer. This air cooled A/C unit is pre-charged with refrigerant and uses re-sealable fittings for quick and efficient connects and disconnects. You may find other A/C systems on the market that offer quick-disconnect fittings for less money, but keep this in mind when making your decision:

• other quick-disconnect fittings only allow you to connect the parts once – Excel Air systems are the only systems available that feature fittings that can be connected, disconnected and reconnected without the need of a trained of a certified installer.
• when you add up the cost of freight and professional installation, you will find that the Excel Air system is actually less expensive.

The system is a complete package making it the perfect solution for any grow room or home.

The Stealth Series is designed for sound conscious installs as well as tremendous versatility. The compressor is removed from the outdoor condenser and placed into a separate sound deadened box, elinminating all compressor noise from the outdoors and providing simple compressor swap out and overall system weight distribution. This system comes as a complete package along with re-sealable plug and play fittings at every connection point.

Why is everyone growing in Sealed Rooms?
Air Conditioning is the single most important item when growing in a sealed room. Without removing the hot air from your room it makes it impossible to control and maintain a healthy strong plant. Many individuals are turning to Sealed Rooms because it is the only method that allows an individual to achieve the highest yields possible easily recouping any investment in a very short time. By running a sealed room you can now control your environment, things such as; Temperature, CO2 Levels, Air Circulation, smell, spores and other diseases.

What is Air Cooled Air Conditioning?
Air Cooled Air Conditioning is a refrigeration process that allows warm air to pass through a refrigerated Air Handler coil and blow out cold air. This refrigeration process is done by using 3 key components; Indoor Air Handler, Outdoor Condensing Unit and a Compressor. The Indoor Air Handler will be placed inside the room you wish to cool or placed in another room as long as both the supply and return air openings are ducted from the Air Handler to the area you wish to cool. This Air Handler is equipped with a refrigerated A-Coil and a Scroll cage Blower Fan. The air comes in from the return air opening (bottom) and passes past the refrigerant cooled A-Coil then into the Blower fan and out the supply air opening (top).

The Condensing Unit must be placed outside. The reason for this is because it acts much like a radiator on a car, it’s a large copper coil where refrigerant travels through many tubes and removes the heat by using both outdoor air and a large propeller fan to blow the heat away.

Lastly the compressor which is commonly found inside the Outdoor Condensing Unit or if talking about Excel Air Systems Stealth Series in a separate sound deadened box. The compressor is the driving force of the refrigerant, it’s sole purpose is to pump the cooling refrigerant from the Air Handler to the Condensing Unit.

When this loop occurs the refrigerant will go from a gaseous state while it absorbs heat from inside the room using the A-Coil then pumps it the Outdoor Condensing Unit where it dissipates the heat using both the surface area of the condenser coil and the large propeller fan cooling the refrigerant and turning it back into a liquid state.

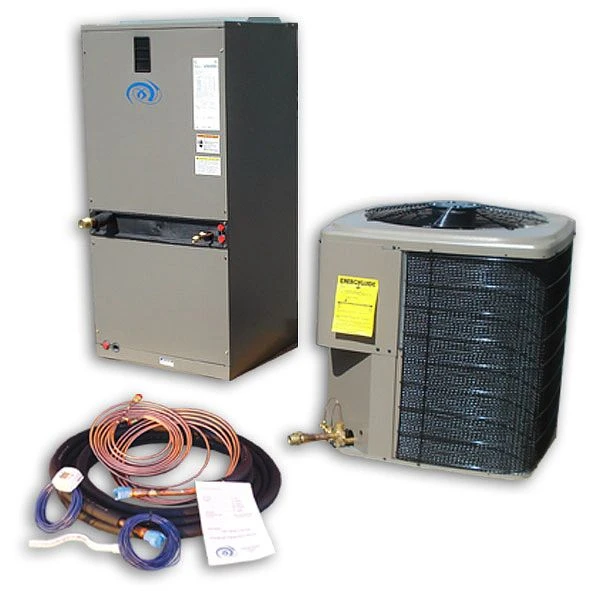

The XL Series Air Cooled Air Conditioning unit is Excel’s flagship product and is built from a split system design. The Split System design allows for the indoor air handler to act as the blower inside while the outdoor condensing unit rejects indoor heat to the fresh air outside. This unit comes equipped with Plug and Play fittings making it your best choice for quick and easy installations. The XL series is available in sizes ranging from 2.0 TON (24,000 BTU) to 5.0 TON (60,000 BTU).

Plug and Play
Plug and Play refrigeration fittings make air cooled units simple to install by yourself; without the need of a costly certified installer. Each refrigeration line is pre-charged with the correct amount of refrigerant for your system. Just thread the fittings together and startup your system! The fittings are re-sealable unlike the generic units on the market, meaning, if you need to take your system out for servicing or relocation no refrigerant is lost and can simply be re-installed.
