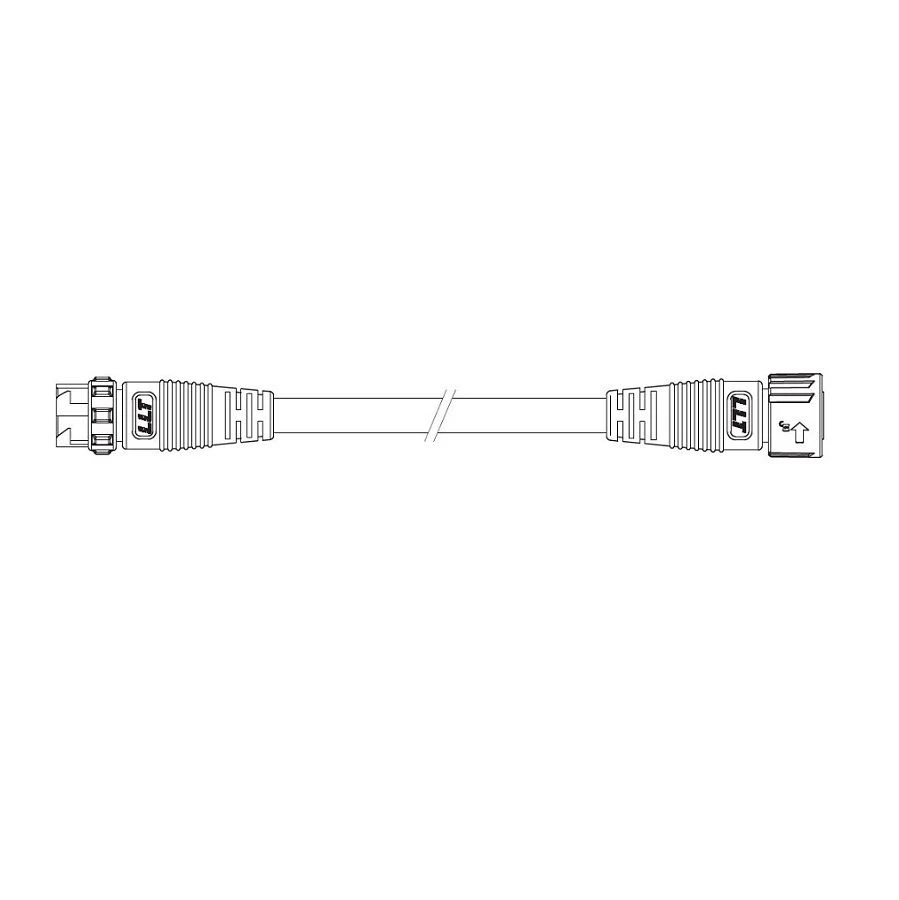

Fluence Dimming / FLEX Extension Cable – 12′ (M16)

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams

Use this Dimming / FLEX Extension Cable to create extra distance between fixtures, or to extend the distance between the dimmer and the first fixture.

DC FLEX DIMMING CABLE SYSTEM:

These cables provide a low-cost solution to connect multiple power supplies for dimming. When grouped, independent dimming control zones are formed, organized, and isolated in case of problematic environmental factors.

FEATURES AND BENEFITS

• Plug-and-play “T” cables and cable extensions with matching connectors. No wire cutting or stripping is needed, reducing installation time and cost.
• Multiple cable length options are available to create dimming zones with various configurations.
• IP 65 rating ensures full protection from environmental factors from lighting control panel to dimming ports on power supplies.
• 100% compatible for all Fluence products with either pushlock or threaded connectors.
• Ground shield ensures maximum electrical performance for low voltage dimming signals.

Fluence part #: CDMA-71365

Connector Legend:

• M12 – Latest connector type, found on most new SPYDR 2, FANG, VYPR 3 and RAZRm fixtures
• M16 Push Lock – Predecessor of the M12, this connector type was used on all SPYDR 2 and VYPR 2 fixtures prior to the M12 introduction
• M16 Twist Lock – This connector is used on most SPYDRx and VYPRx fixtures, and all RAZRx and RAY fixtures
• 3.5mm Jack – This connector was used on some the oldest first generation SPYDRx and VYPRx fixtures

If you need any help determining which Fluence cords or accessories you need please contact us and we’ll be happy to help!
