Fluence M12 Dimming Signal Cable – Pigtail To 4-pin M12 Threaded Connector – 5 Feet

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams – M12 Connector

This cable is NOT compatible with the M16 (plastic push-lock) dimming port found on older Gen 2 fixtures (see Connector Legend below). This cable uses an M12 (metal screw-on) connector.

For connecting a Fluence dimmer (or third party lighting controller/dimmer) to multiple fixtures only.

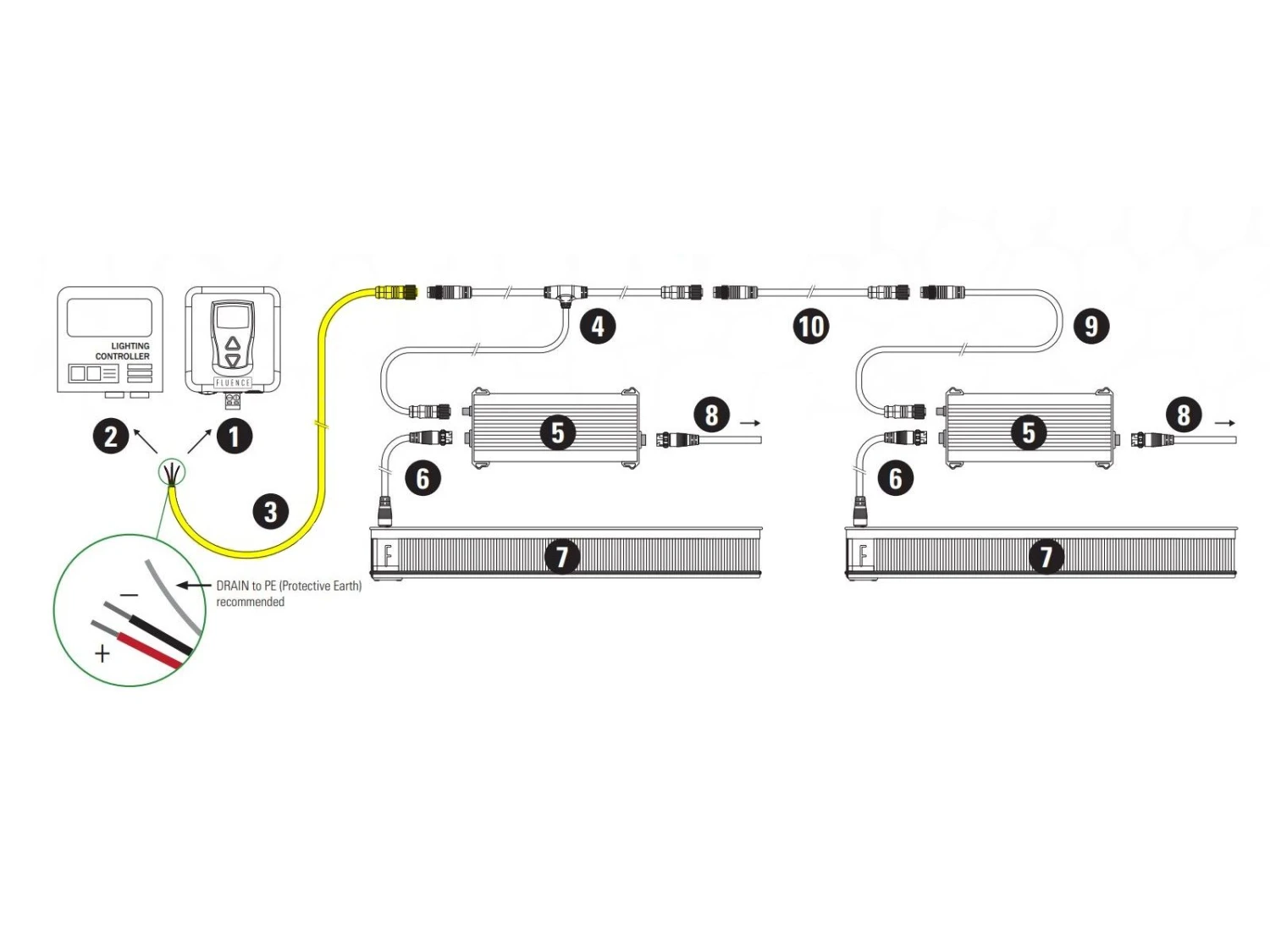

One end of this genuine Fluence DC Dimming Signal Cable connects to the Terminal Block on the Fluence dimmer (or third party lighting controller/dimmer), the other end connects to a Flex T-Connector or Flex Extension Cable.

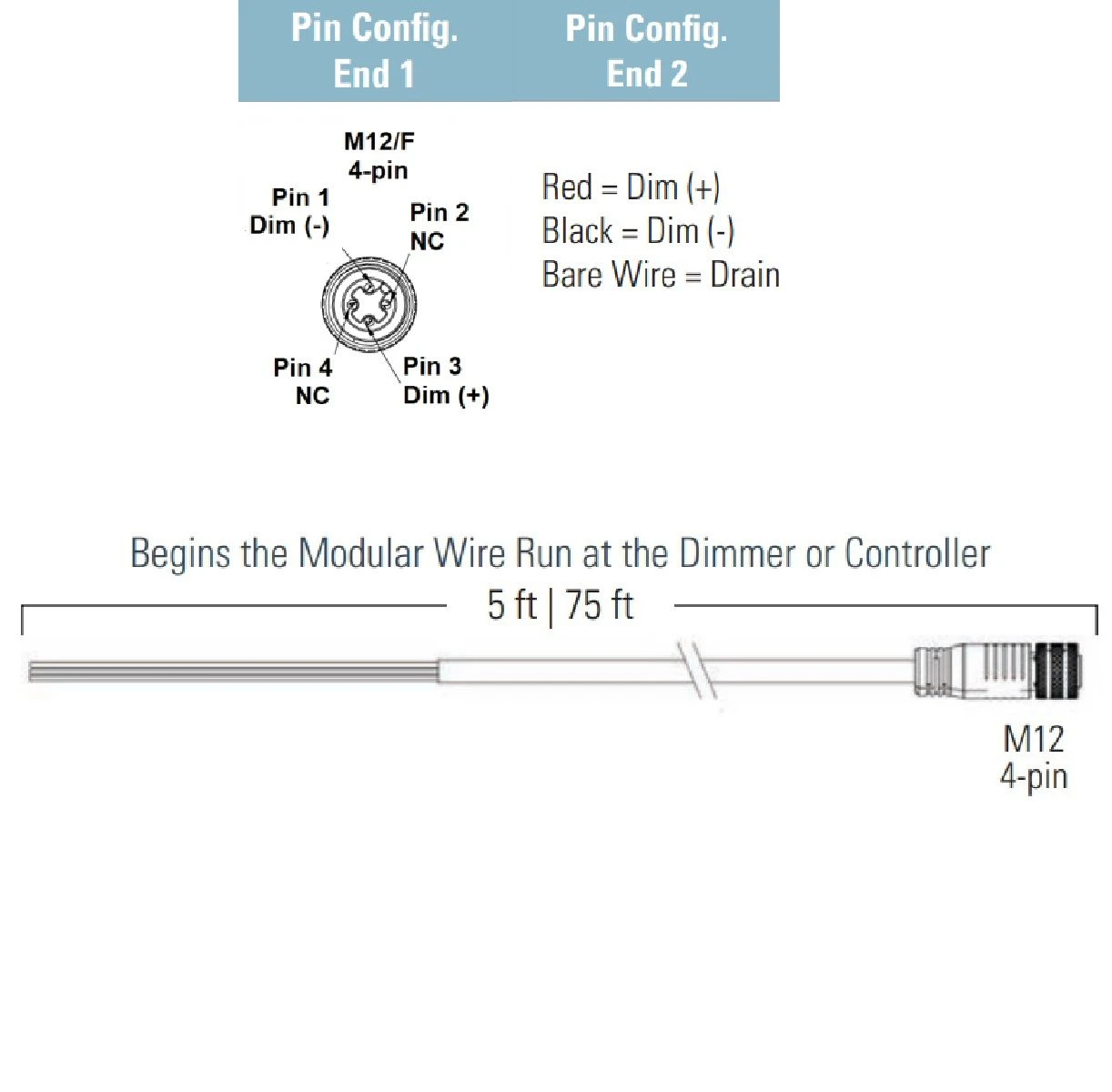

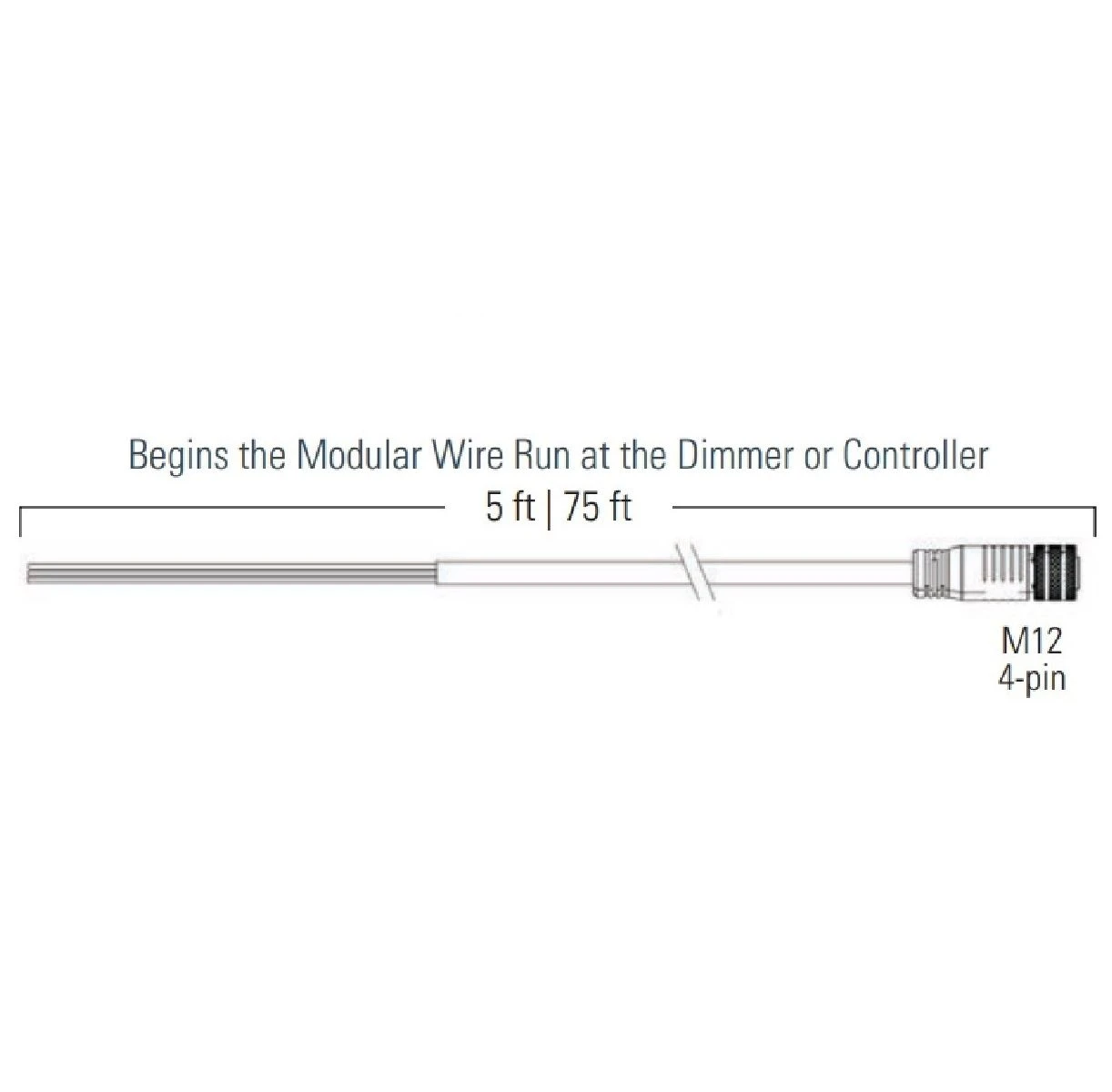

Plug type: Pigtail (bare wires) / M12 (4-pin)

Cable length: 5′

Fluence part #: CDMA-71611

This dimmer cable is compatible with Light Fixtures with PSU2 (M12) power supply. This pigtail trunk extension is 5 feet in length. The Max DC Volt rating is 12V. The Max DC Current rating is 7A. The connector end 1 is a threaded female M12 4-pin. The connector end 2 is pigtails. The cord type is AWM UL 21996/UL 22190 2X20 AWG/ 0.5mm², plus drain. The maximum quantity is up to 50 connected light fixtures per branch. The rated mA capacity of the light controller/dimmer used may support fewer fixtures per branch. The maximum distance between the first and last light fixtures is 200-300 feet. A single-point shield grounding to earth is recommended.

Connector Legend:

• M12 – Latest connector type, found on most new SPYDR 2, VYPR 3 and RAZRm fixtures
• M16 Push Lock – Predecessor of the M12, this connector type was used on all SPYDR 2 and VYPR 2 fixtures prior to the M12 introduction
• M16 Twist Lock – This connector is used on most SPYDRx and VYPRx fixtures, and all RAZRx and RAY fixtures
• 3.5mm Jack – This connector was used on some the oldest first generation SPYDRx and VYPRx fixtures

If you need any help determining which Fluence cords or accessories you need please contact us and we’ll be happy to help!
