Fluence M12 Flex Dimming 1-T Cable, M12 Threaded Connectors – 5 Feet

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams – M12 Connector

This cable is NOT compatible with the M16 dimming port found on older Gen 2 fixtures (see Connector Legend below). This cable uses an M12 (metal screw-on) connector; if your power supply uses an M16 (plastic push-lock) then you will need to use an M16 FLEX cable or an M12 to M16 adapter. This cable cannot be used with Gen 1 fixtures (SPYDRx, SPYDRx PLUS, RAZR or RAY).

One T-Connector is required for every light in a series. Use a 5′ cable if fixtures are mounted less than 5′ apart, or a 10′ cable for greater spacing. Use a 20′ 4-output cable to connect 4 fixtures in a series that will be mounted less than 5′ apart (more affordable than purchasing (4) individual 5′ cables).

Compatible with any Gen 2 or later Fluence fixture that has an M12 dimming port, such as:

• SPYDR FANG
• SPYDR 2x (newer model only)
• SPYDR 2p (newer model only)
• SPYDR 2i (newer model only)
• SPYDR 2h
• VYPR 3x
• VYPR 3p
• RAZRm

Fluence part #: CDMA-71557

DC FLEX DIMMING CABLE SYSTEM

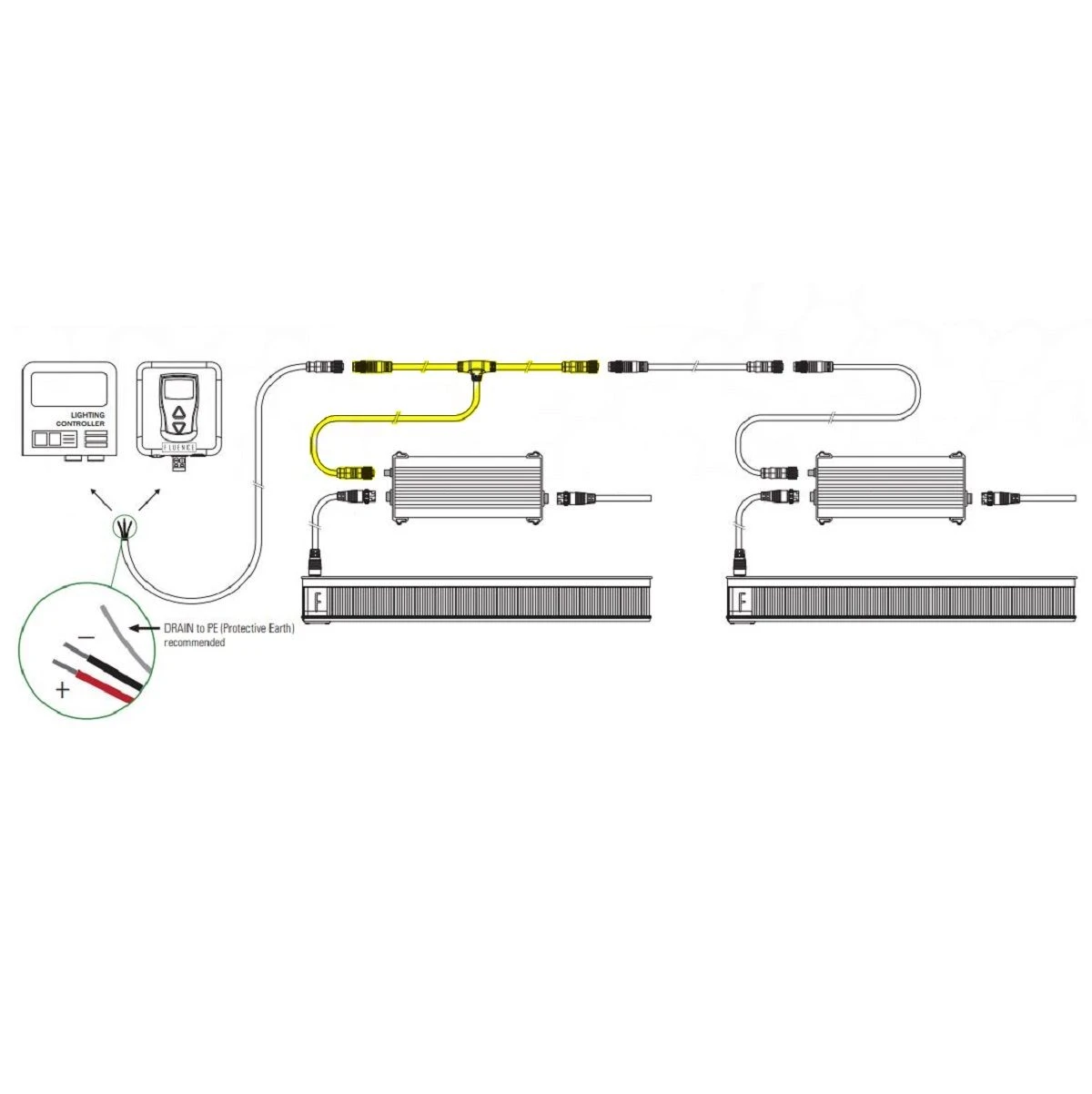

These cables provide a low-cost solution to connect multiple power supplies for dimming. When grouped, independent dimming control zones are formed, organized, and isolated in case of problematic environmental factors.

FEATURES AND BENEFITS

• Plug-and-play “T” cables and cable extensions with matching connectors. No wire cutting or stripping is needed, reducing installation time and cost.
• Multiple cable length options are available to create dimming zones with various configurations.
• IP 65 rating ensures full protection from environmental factors from lighting control panel to dimming ports on power supplies.
• 100% compatible for all Fluence products with either pushlock or threaded connectors.
• Ground shield ensures maximum electrical performance for low voltage dimming signals.

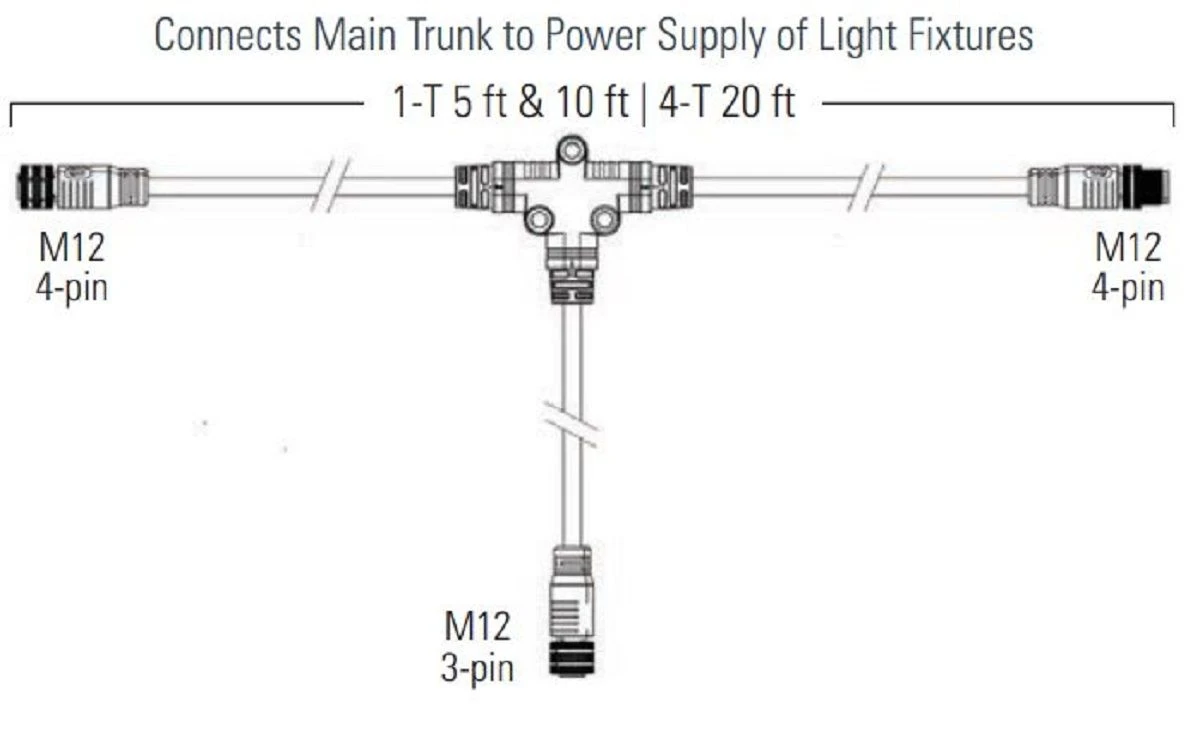

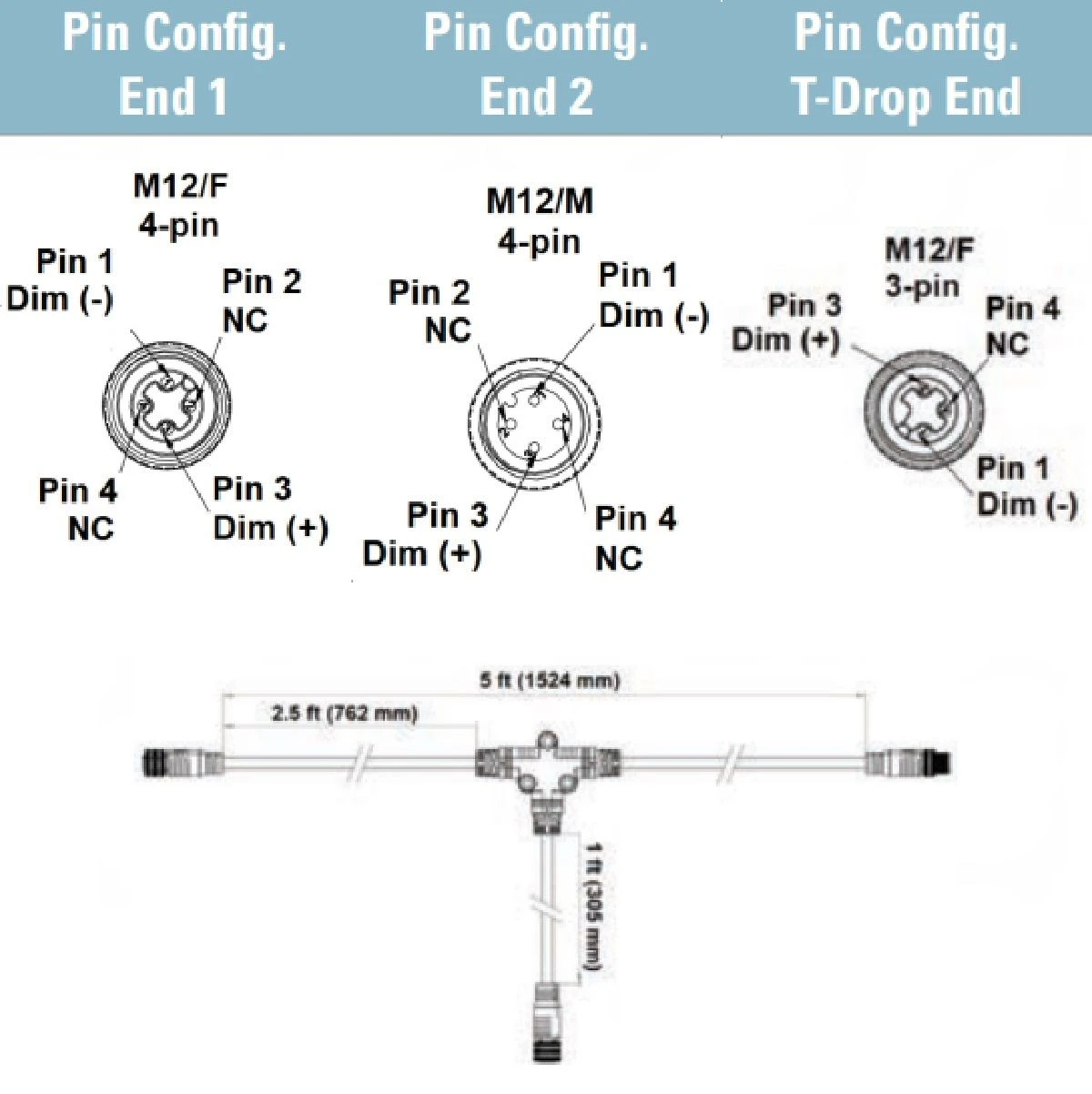

This 1-T Cable is 5 feet in length. The Max DC Volt rating is 12V. The Max DC Current rating is 7A. The connector end 1 is a threaded female M12 4-pin. The connector end 2 is a threaded male M12 4-pin. The connector T drop end is a threaded female M12 3-pin. The cord type is AWM UL 21996/UL 22190 2X20 AWG/ 0.5mm², plus drain. The maximum quantity is up to 50 connected light fixtures per branch. The rated mA capacity of the light controller/dimmer used may support fewer fixtures per branch. The maximum distance between the first and last light fixtures is 200-300 feet. A single-point shield grounding to earth is recommended.

Connector Legend:

• M12 – Latest connector type, found on most new SPYDR 2, VYPR 3 and RAZRm fixtures
• M16 Push Lock – Predecessor of the M12, this connector type was used on all SPYDR 2 and VYPR 2 fixtures prior to the M12 introduction
• M16 Twist Lock – This connector is used on most SPYDRx and VYPRx fixtures, and all RAZRx and RAY fixtures
• 3.5mm Jack – This connector was used on some the oldest first generation SPYDRx and VYPRx fixtures

If you need any help determining which Fluence cords or accessories you need please contact us and we’ll be happy to help!
