Fluence M12 Flex Dimming Extension Cable, M12 Threaded Connectors – 5 Feet
Original price was: $35.71.$25.00Current price is: $25.00.
Please read before adding this item to your cart. If you need help figuring out which Fluence parts to purchase and/or you are not 100% certain you are ordering the correct items, please contact us before making your purchase – we’re Fluence experts and we’re here to help! If you order the incorrect Fluence parts they may be subject to a restocking fee if returned.

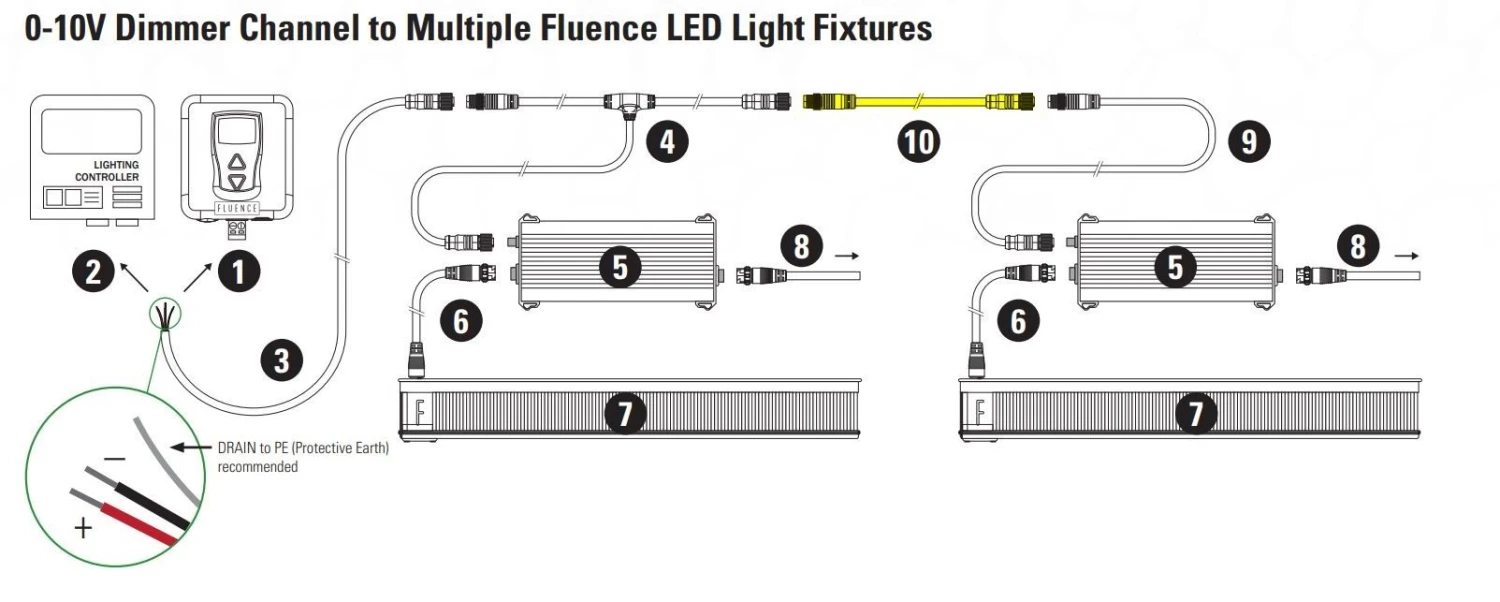

Complete Fluence Dimming & FLEX Cable Guide w/Diagrams – M12 Connector
Use this Dimming / FLEX Extension Cable to create extra distance between fixtures, or to extend the distance between the dimmer and the first fixture.
These cables provide a low-cost solution to connect multiple power supplies for dimming. When grouped, independent dimming control zones are formed, organized, and isolated in case of problematic environmental factors.
- Service that stands out, online and always timely.
- Shop with confidence, we guarantee quality.
- Effortless solutions, excellent customer care.
- The Quality Choice for Smart Shoppers
Complete Fluence Dimming & FLEX Cable Guide w/Diagrams – M12 Connector
Use this Dimming / FLEX Extension Cable to create extra distance between fixtures, or to extend the distance between the dimmer and the first fixture.
DC FLEX DIMMING CABLE SYSTEM
These cables provide a low-cost solution to connect multiple power supplies for dimming. When grouped, independent dimming control zones are formed, organized, and isolated in case of problematic environmental factors.
FEATURES AND BENEFITS
- Plug-and-play “T” cables and cable extensions with matching connectors. No wire cutting or stripping is needed, reducing installation time and cost.
- Multiple cable length options are available to create dimming zones with various configurations.
- IP 65 rating ensures full protection from environmental factors from lighting control panel to dimming ports on power supplies.
- 100% compatible for all Fluence products with either pushlock or threaded connectors.
- Ground shield ensures maximum electrical performance for low voltage dimming signals.
Fluence part #: CDMA-71613

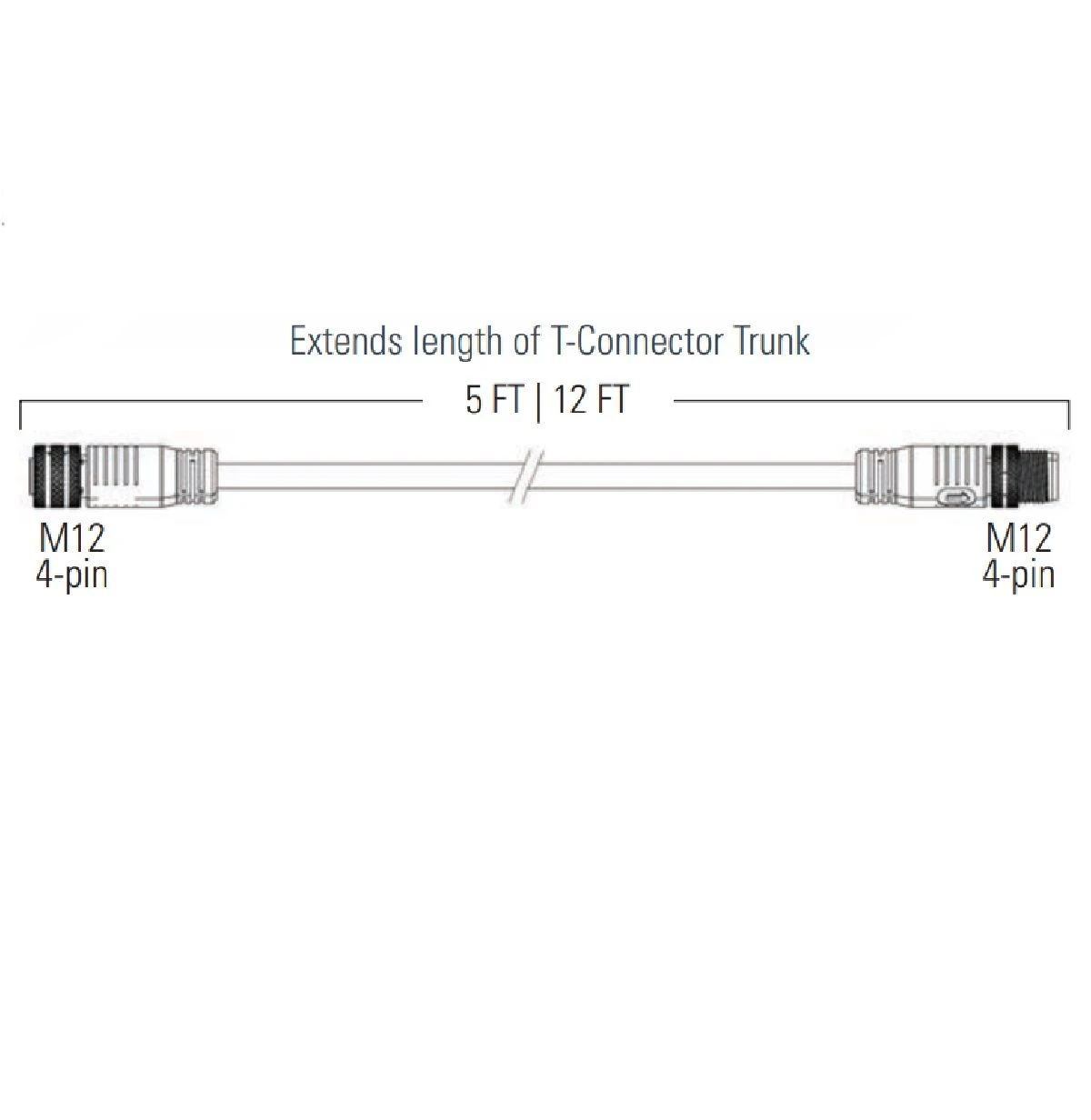

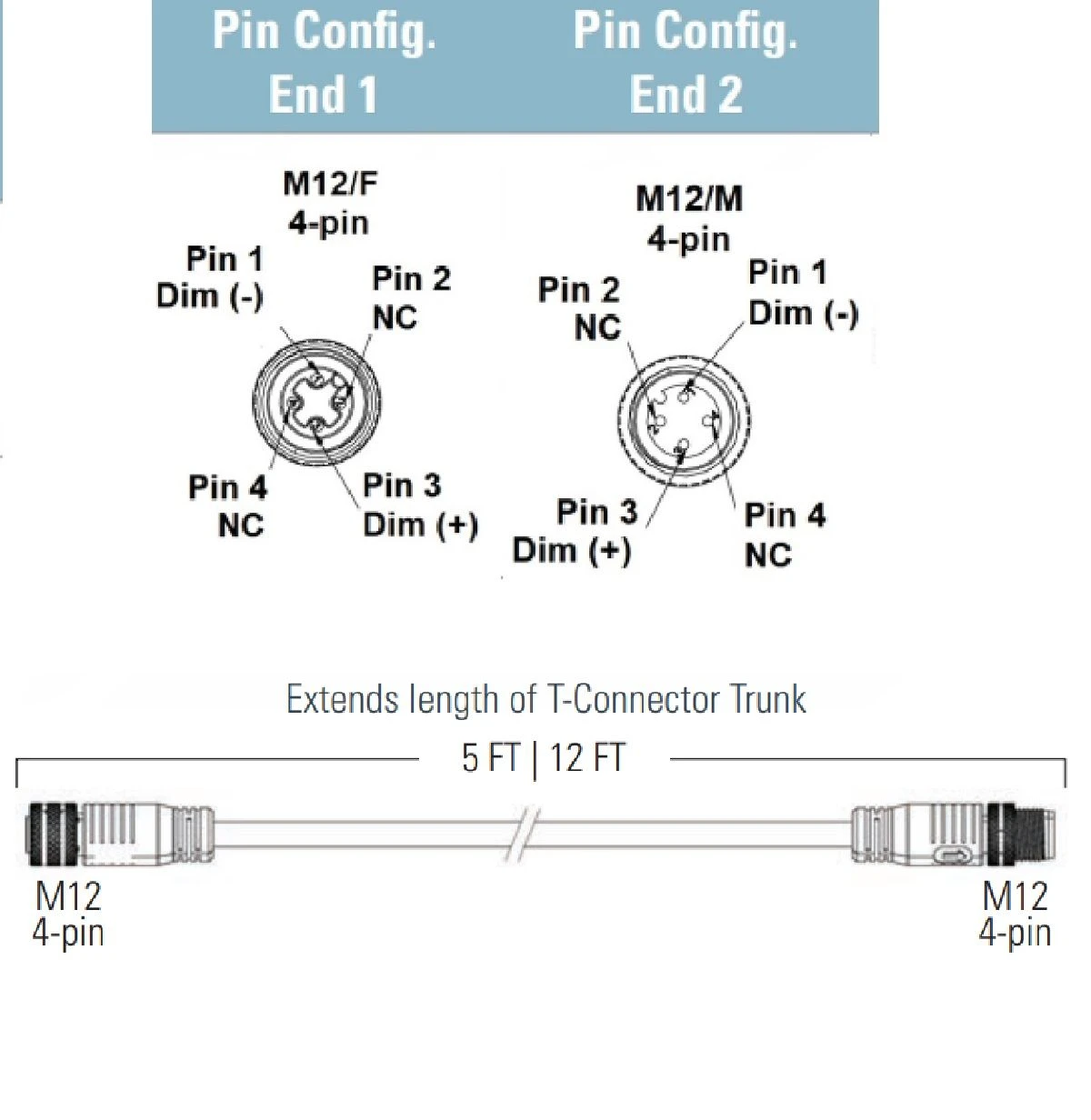

This trunk extension cable is compatible with Light Fixtures with PSU2 (M12) power supply. This cable is 5 feet in length. The Max DC Volt rating is 12V. The Max DC Current rating is 7A. The connector end 1 is a threaded female M12 4-pin. The connector end 2 is a threaded male M12 4-pin. The cord type is AWM UL 21996/UL 22190 2X20 AWG/ 0.5mm², plus drain. The maximum quantity is up to 50 connected light fixtures per branch. The rated mA capacity of the light controller/dimmer used may support fewer fixtures per branch. The maximum distance between the first and last light fixtures is 200-300 feet. A single-point shield grounding to earth is recommended.
| SKU | 7475 |
|---|---|
| Manufacturer's Suggested Retail Price | $43.75 |
| Dimensional/Billable Weight (lbs) | 1.00 |
| Actual Product Weight | .29 |
| Length (in.) | 10.5 |
| Width (in.) | 16 |
| Height (in.) | 1.5 |
| Lead Time | Normally ships same or next business day |
| Brand | Fluence Bioengineering |
| Vendor Item # | CDMA-71613 |
| Manufacturer Warranty | Yes |
