Fluence VYPR 2p LED Grow Light System

With energy efficiency reaching 2.7 µmol/J and 1700 PPF, VYPR is a path to sustainability and productivity.

VYPR 2p is a full-cycle top lighting solution for high bay growing environments. VYPR 2p is ideal for greenhouse supplemental lighting or indoor sole-source lighting. VYPR 2p builds on the previous generation’s VYPRx PLUS performance with nearly a 45% increase in PPF levels and a 18% increase in efficacy.

Grow Into The Night. Grow Into The Winter. Grow Year-Round. Whether extending your day or extending your season, VYPR has the power, energy efficiency and longevity to grow sunup to sundown to sunup… year-round.

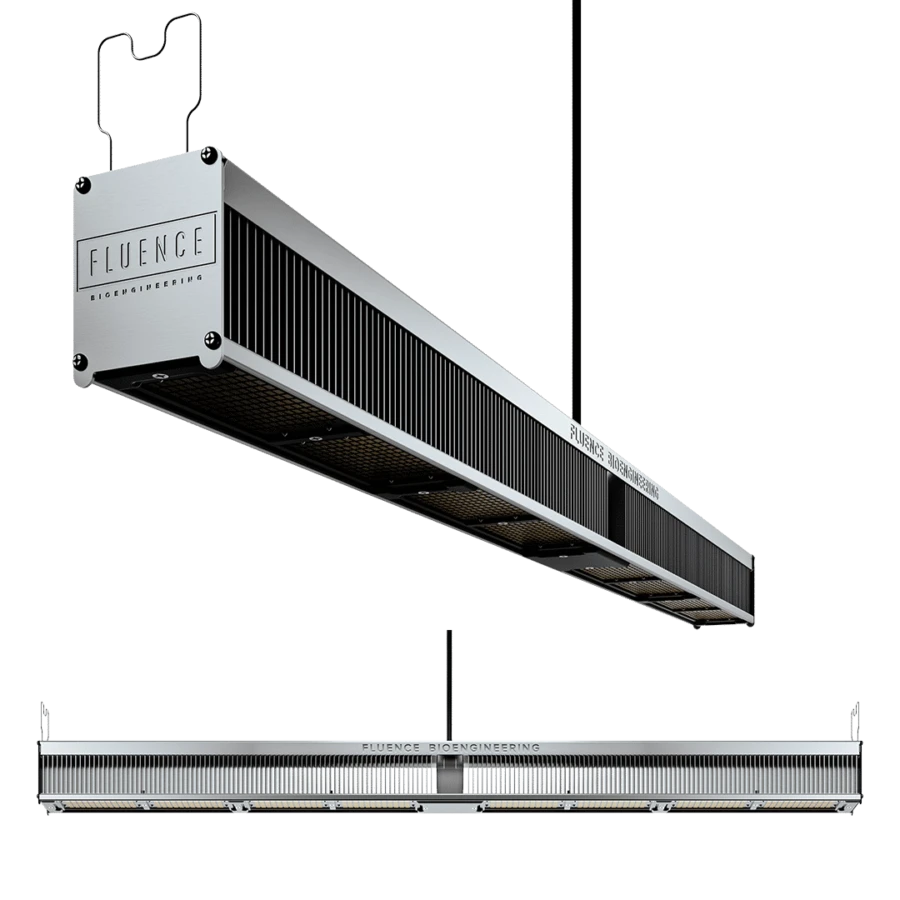

VYPR is only 2.9” wide for shade free deployment. VYPR has a photosynthetic photon flux (PPF) up to 1700 µmol/s. New power supply enclosure equipped with PushLock connectors for quick and easy installation.

All VYPR models are dimmable with our light intensity Dimmer for precise control over PPFD and offer flexibility to instantly accommodate a new crop with varying light requirements.

Recommended mounting height is ≥ 24” (61cm) above the canopy. BGH (and Fluence) both recommend a mounting height of approx. 3.5′ above canopy, which will cover 16-18 sq ft and achieve approx. 950 PPFD. We do not recommend using the VYPR as a single light source, it’s primarily designed to be used in large rooms where many VYPR’s will be needed/deployed.

PhysioSpec Indoor is a full-cycle spectrum optimized for rapid growth and complete plant development. Tailored for growing plants from initiation to senescence (germination, clones/cuttings, mothers, vegetative and flowering applications) in indoor environments.  With a CRI rating of 85, PhysioSpec Indoor offers a beautiful work and research environment with vivid colors and greater contrast to study the health of your crop.

Compared to PhysioSpec Indoor, PhysioSpec Greenhouse is enriched with a higher amount of blue photons in the 400-500nm range, which are used to offset plant stretch induced by the sun’s far red radiation. As an added bonus, PhysioSpec Greenhouse offers a world-class work and research environment with vivid colors and greater contrast to study the health of your crop.

Plug Type Options:

• NEMA 5-15P: This is the standard plug type for most residential (110/120V) outlets in the U.S.
• NEMA 6-15P: This is the standard plug type for most commercial (220/240V) outlets in the U.S.
• NEMA L7-15P: This is a twist-lock plug that is usually meant for outlets with voltages that are 220V or higher.
• Pigtails: If you choose this option there will be no plug at the end of the power cord, only bare wires. This option is normally chosen if the fixture will be hard-wired to your power source.
• Schuko: This plug type is commonly used in most European countries.

Mounting Hardware Options:

• VYPR Pipe Bracket: Ideal for hanging VYPR series fixtures below pipes.
• VYPR Square Bracket: Ideal for hanging VYPR series fixtures from structural channel.
• Short “V” Mounting Brackets: Ideal for hanging VYPR series fixtures from Unistrut.

DC Cord Options: The power supply is connected to the fixture using a DC Cord. A pair of Power Supply Mounts is included with every fixture, which are ideal for pipes but wide enough for Unistrut as well.

Specifications:

• PPF: 1700 µmol/s
• Power consumption (watts): 631 typical
• Electrical efficiency (μmol/J): 2.7
• Amperage: see below
• Weight (lbs): 9 lbs 4 oz (fixture), 12 lbs (power supply)
• Spectrum: PhysioSpec Indoor™ or PhysioSpec Greenhouse™

Electrical Specs:

Input voltage is 100-277v. Amperage depends on fixture wattage (631W for VYPR 2p) and input voltage. Below is a general estimate. Actual figures may vary.

• Amps @ 120V: 5.2A
• Amps @ 208V: 3.03A
• Amps @ 240V: 2.63A
• Amps @ 277V: 2.28A

Note: Starting late 2019 all VYPR 2p’s will now ship with the new PSU power supply (as opposed to the old PSE model). This new PSU is much smaller and lighter than the old PSE. See product images for specs.

Warranty:

All VYPR 2 systems are guaranteed against manufacturing defects for five years with projected lifetime of 50,000 operating hours to 90 percent of initial flux.

Return Policy:

Fluence lighting products are non-returnable. From Fluence – “Since all lighting systems depreciate with use (including the sun), we do not accept returns or exchanges on any lighting products. We do, however, offer a warranty guaranteeing our products for three years.”
