Nanolux LEDzx 630w Commercial LED Fixture
Original price was: $317.00.$95.99Current price is: $95.99.
The Nanolux LEDzx fixture is designed to be lightweight and compact. This fixture is foldable for easy handling. It allows random start, soft start, soft dimming capabilities, and features over-temperature protection, under-voltage protection and open / short circuit protection. The fixture is 0-10V compatible, allowing control of your lighting with 0-10V protocol.
The units can be used at any voltage range of 100-277 volts and features a smart digital control. If one or several bars fail, the life of other bars and the power supply will not be affected. IP65 rated, 2.65 umol/j for a total of 1650 umol/s.
- Service that stands out, online and always timely.
- Shop with confidence, we guarantee quality.
- Effortless solutions, excellent customer care.
- The Quality Choice for Smart Shoppers
NanoLux LEDzx 630W Features:
- 110V-277V wide voltage design, available with different NEMA power plugs for a wider range of voltage used.

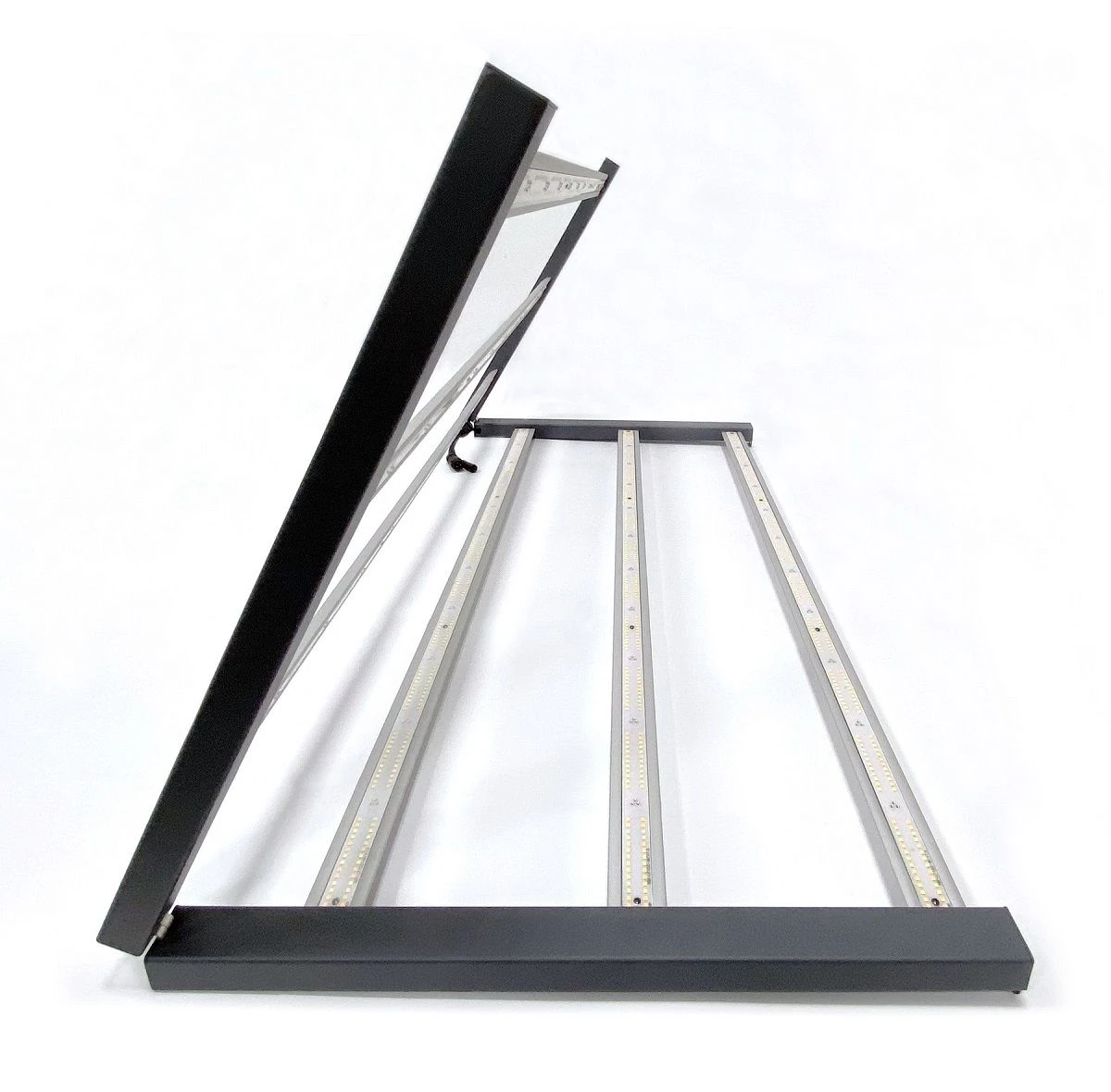

- Folding design facilitates transportation and saves on shipping and storage costs.
- Modular patented design.

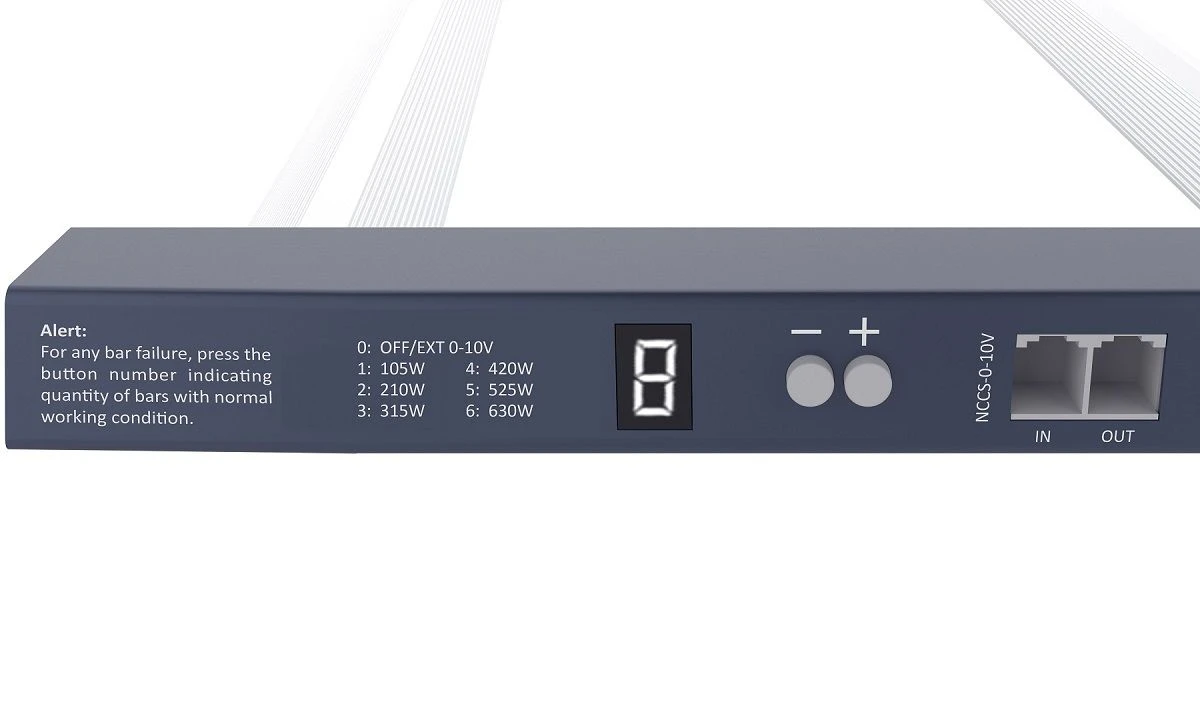

- Digital control buttons are used for smart digital dimming with dimming ranges of 105W, 210W, 315W, 420W, 525W, and 630W
- Smart digital bar protection system: Upon one or more bar failures the system will digitally protect working bars and the power supply allowing for continuous ongoing operation.
- IP65 design protects against environmental conditions such as moisture and dust.
- Included features: Random start, soft start, soft dimming, over-temperature, over-voltage and open/short circuit protection.
- Compatible with various 0-10V control systems.
- Uses Sanan high-quality horticultural chips
LEDzx 630W Operating Manual
LEDzx 630W Spec Sheet
Specifications:
- Light Output PPF 1650 μmol/s
- Efficiency 2.62 μmol/J
- Dimmingj 0-10V
- Input Power 630W
- Input Voltage AC 110V-277V
- Mounting Height 8”- 20” (20-50cm) above canopy
- Operating Temperature 0°C~35°C
- Operating Humidity 0~95%
- Thermal Management Passive
- Requirement of Installment Comply with ETL/FCC/CE/EAC certificate
- Lifetime L90 > 50,000hrs
- Product Dimensions 48″ L x 46″ W x 3″ H
- Product Weight 24
- Packaing Dimensions 48″ L x 24″ W x 4″ H
- Gross Weight 28
- Warranty 5 Year standard warranty
| SKU | 13500 |
|---|---|
| Dimensional/Billable Weight (lbs) | 24.00 |
| Brand | Nanolux |
| Manufacturer | Nanolux |
| Length (in.) | 48 |
| Width (in.) | 46 |
| Height (in.) | 3 |
| Vendor Item # | LEDzx-630w |
| Manufacturer Warranty | Yes |
| Manufacturer's Suggested Retail Price | $875.00 |
| Bulb(s) Included | Yes |
