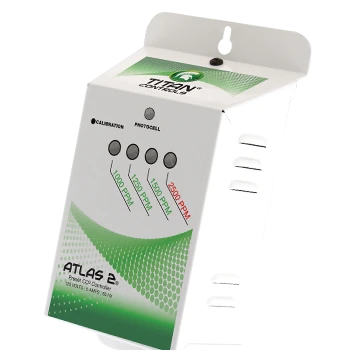

Titan Controls Atlas 2 – CO2 Preset Monitor/Controller

The Atlas 2 – Preset CO2 controller is the most simple and straightforward CO2 controller available in the industry today! It’s factory calibrated & preset to maintain the CO2 level in your garden at 1500 PPM. It features a built-in photocell that allows the Atlas 2 to operate only in the ‘daytime’ period when your plants can process CO2. Another industry first, brought to you by the design team at Titan Controls!

• Preset at 1500 PPM for maximum plant benefit
• Simple to operate
• Easiest and most straightforward CO2 controller in the industry today!
• Features built-in ‘self calibration’ function
• Integrated photocell enables operation during daylight hours only
• Factory calibrated
• ETL listed for use in commercial applications
• 120 Volts/15 Amps/60 Hz.
• 3 year warranty

Tech Tips:

Caution: Sulfur vaporization can damage your controller! To protect your controller, it is important to disconnect and cover the Atlas 2 by wrapping with a plastic bag OR remove the controller from the grow area while using sulfur vaporizers in your grow room. Titan Controls can analyze and detect CO2 components that have been contaminated & damaged by sulfur vaporization. We reserve the right to not repair these defective units under warranty, however we can repair & return your Atlas 2 for a fee, if you’d like

Q = How often should I calibrate my Atlas 2?

A = Your Atlas 2 comes to you fully calibrated from the factory. There should be no need to calibrate your Atlas 2 for about 3 years or so. The sensor ‘drifts’ over time and this can affect the calibration of the device. To calibrate the Altas 2, simply take it to an open area free of CO2 sources (people, animals, vehicles, etc.) and turn the Atlas 2 “ON”. Then, using a non-metalic item like a toothpick, push the recessed ‘CALIBRATION’ button on the top right hand corner of the Atlas 2. The LED’s will go back and forth on the display until the CALIBRATION process is complete. Now, place your Atlas 2 back into your grow area and it will function great for the next 3 years!

Q: My CO2 monitor/controller is reading really high all the time. What’s wrong with it?

A: We hear this question a lot. The main issue is the 40,000 ppm of CO2 we exhale when we’re breathing. If you’re in your room and you see that the ppm is high, leave the area for an hour or so and turn off your CO2 source, then peek your head in and check the reading, it should be reading under 1000 ppm mattering on how well your room is sealed. After observing your Atlas 2 CO2 Monitor/Controller for awhile, you’ll start to see what your normal ppm level is in your room. The normal outdoor ppm is 400 ppm to 600 ppm based on where you live (city vs. rural).

Q: Should I run my CO2 at night?

A: No, you shouldn’t. Plants photosynthesize CO2 only during the daylight hours. At night, the plants expire CO2 and have no use for CO2. So, save yourself some money and only dose CO2 during daylight hours when it does the most good for the plants.
