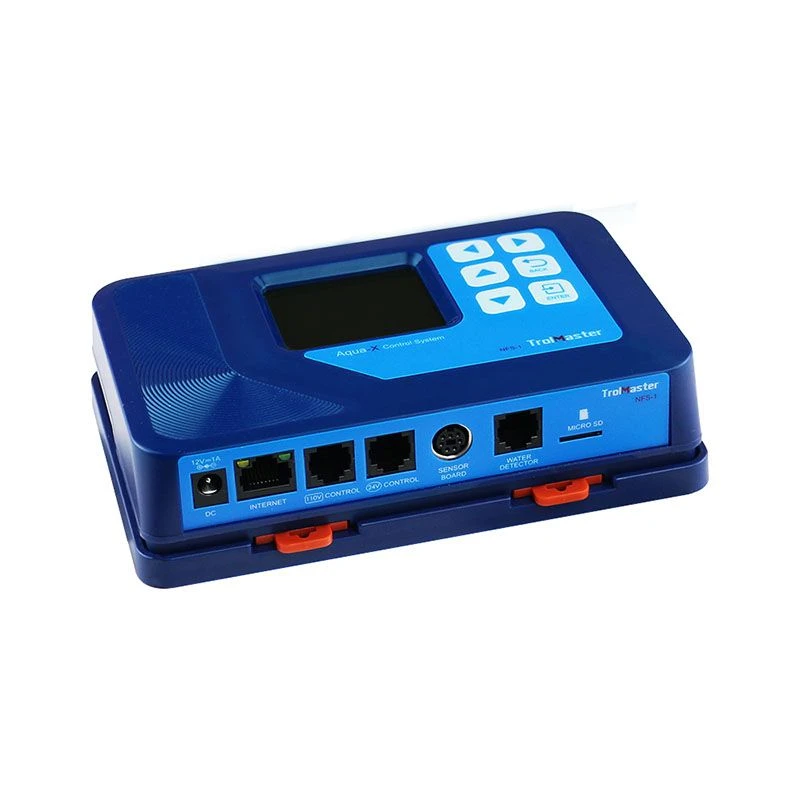

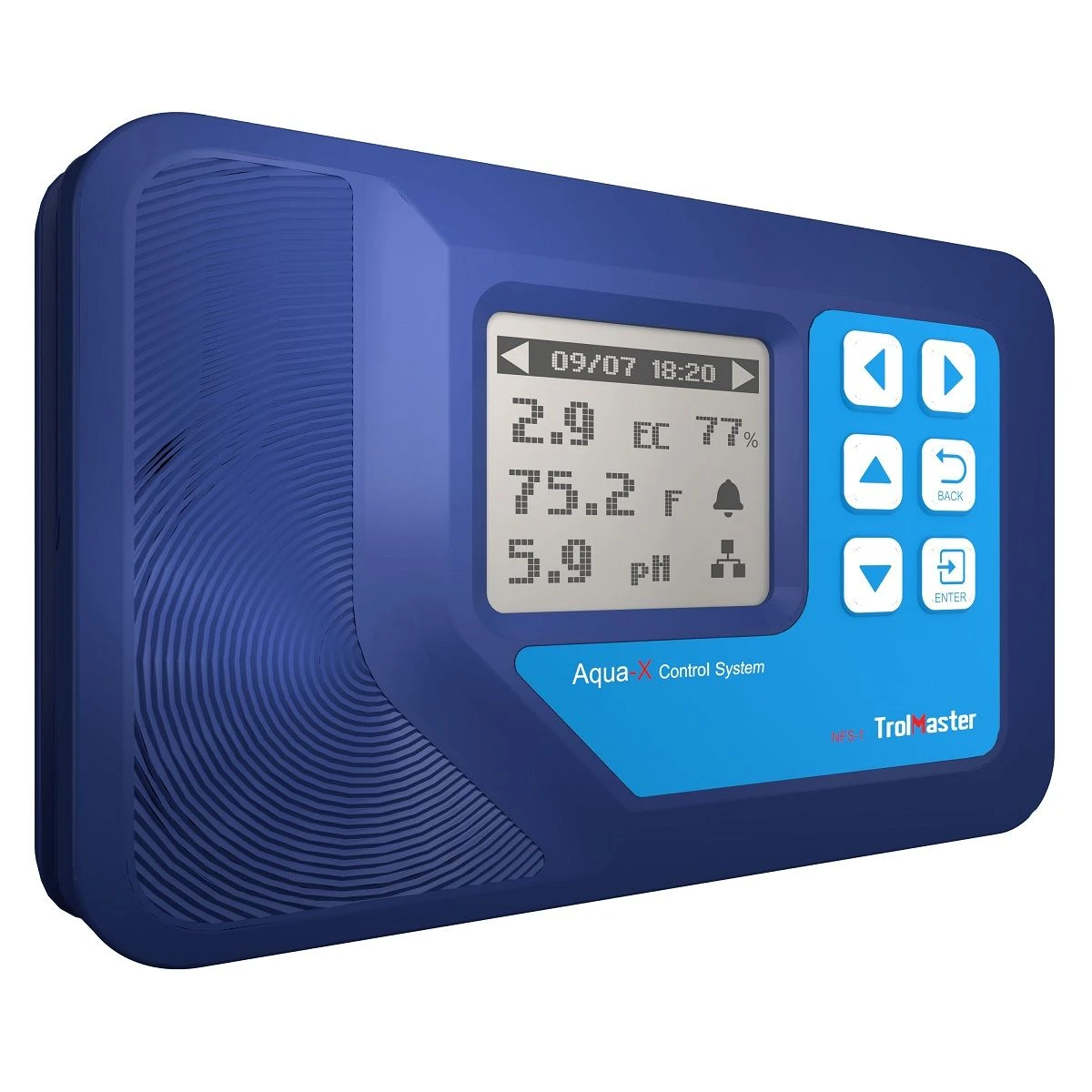

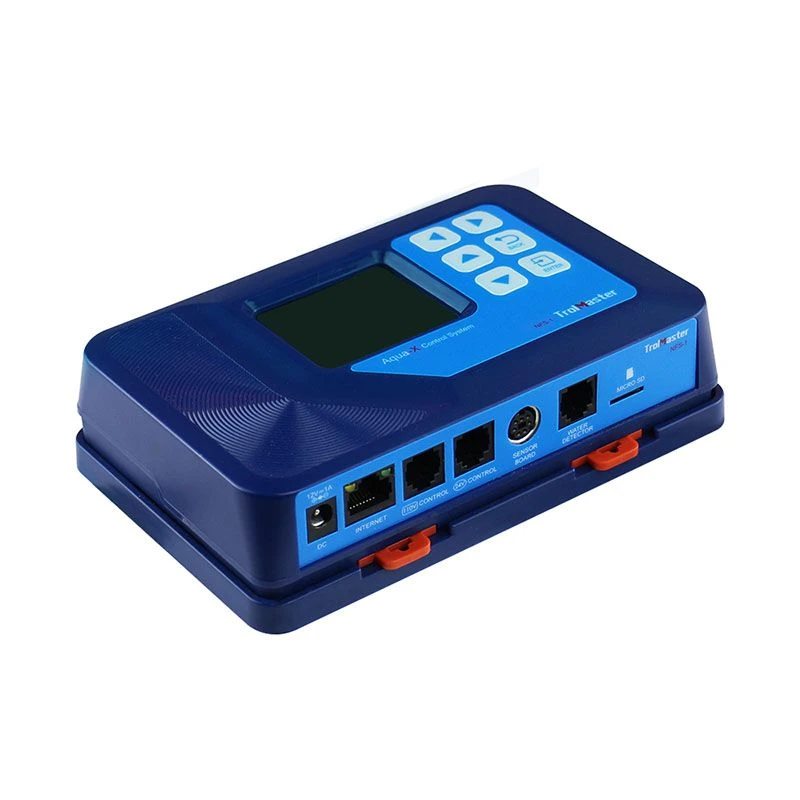

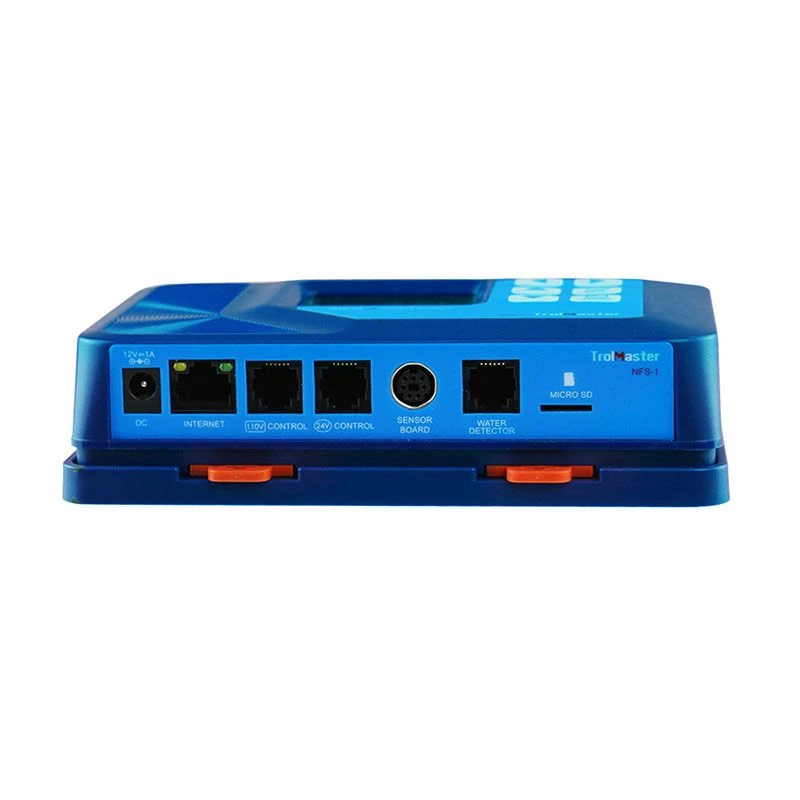

TrolMaster Aqua-X Controller W/ Water Detector Set (NFS-1)

The Aqua-X Irrigation Controller is the main controller of the Aqua-X irrigation control system. With the combination of pH Sensor and EC/Temp Sensor, Aqua-X can monitor the pH, EC and Temp levels of the nutrient. With the use of 110V control board and 24V control board, the system could manage up to 30 individual outputs for multiple watering schedules. With the innovative water detectors, the system could monitor each watering schedules with alerts for watering confirmation.

Package Contents:

• 1 x Aqua-X Irrigation Controller
• 1 x Water Detector
• 1 x Touch Spot
• 1 x 12V Power Adapter

Features:

• LCD Display, Easy Operation
• Managing Multiple Rooms, Multiple Zones Delivery
• Control up to 30 Outputs (24V or 110V)
• pH, EC, Temp Monitoring
• Free Smartphone App with Alerts & Historical Chart
• Data Logging

Specifications:

Input Voltage: 100-240 VAC, 50/60Hz

OA6-24 24V Control Board: Max. 5pcs per set*

OA6-110 110V Control Board: Max. 5pcs per set*

DSP-1 Program Device Station: Max. 5pcs per set*

Water Detector: Max. 30pcs per set

AMP-2 Sensor Board: Max. 1pc per set

PCT-1 or PCT-2 EC/Temp Sensor: Max. 1pc per set

PPH-1 or PPH-2 pH Sensor: Max. 1pc per set

Packaging Dimensions(L*W*H): 275mm x 164mm x 62mm



*NOTE:

Combination application is workable for OA6-24, OA6-110 & DSP-1, but the total quantity can not exceed 5pcs (up to 30 outputs).
