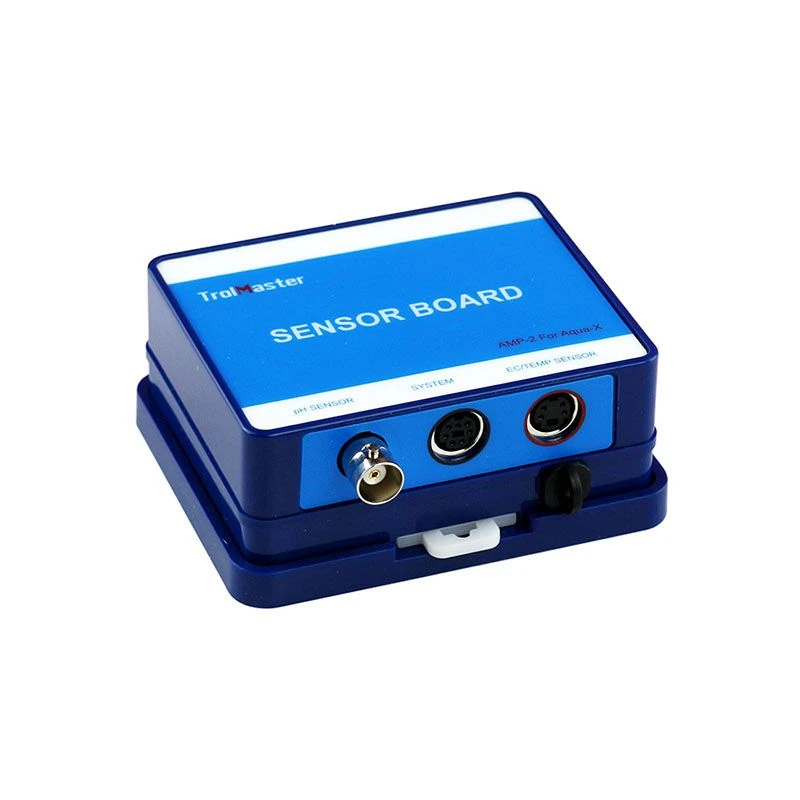

Trolmaster Aqua-X Sensor Board (AMP-2)

AMP-2 Sensor Board is specially designed for Aqua-X Irrigation Control System. With a male-to-male signal cable, this unit acts as a bridge between the sensors (pH Sensor & EC/Temp Sensor) and the Aqua-X Controller. The pH level, EC level and water temperature will be shown on the LCD screen of the Aqua-X master controller.

Features:

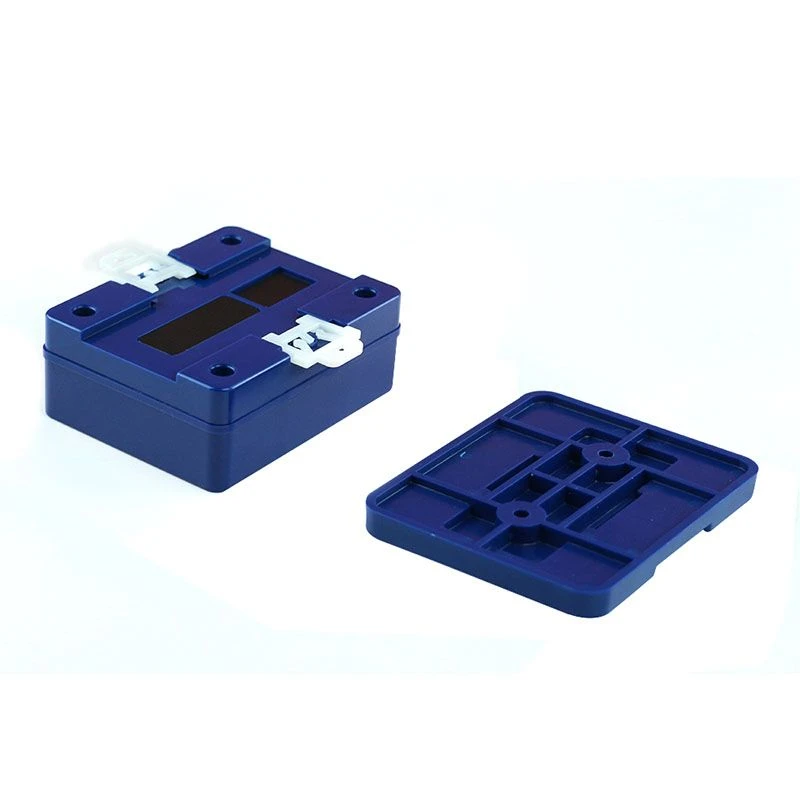

• Simpe-to-Use DIN Type Bracket for Easy Installation
• BNC Terminal (left) allows Direct Connection to pH Sensor
• Mini DIN Terminal (right) allows Direct Connection to EC/Temp Sensor
• Mini DIN Terminal (middle) allows Direct Connection to Aqua-X Controller

Package Contents:

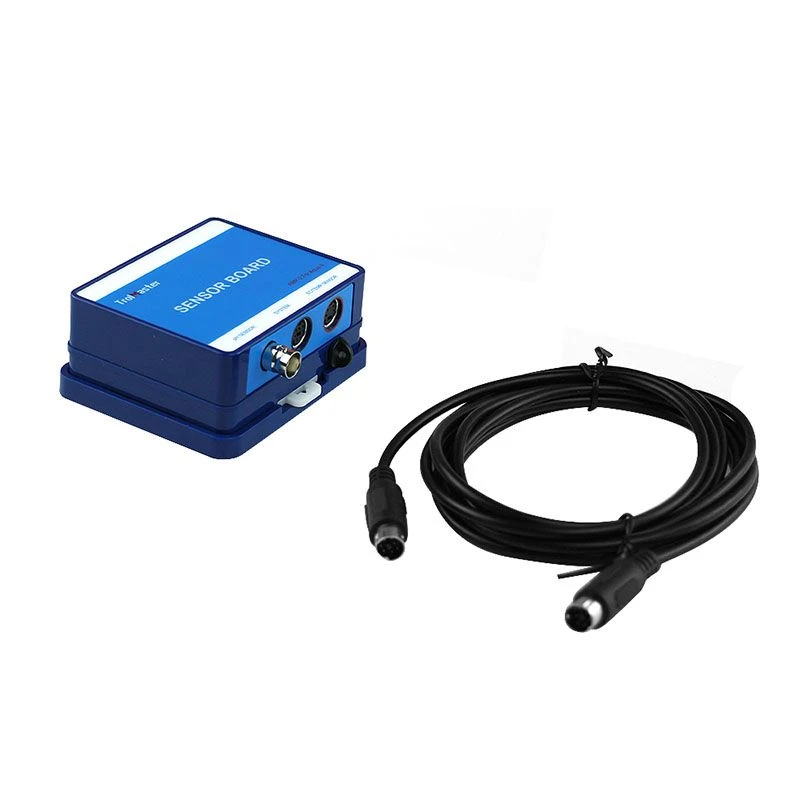

• 1 x Sensor Board
• 1 x 2.5-Meter Long Signal Cable

Specifications:

Working Environments: Temperature 32-122°F, Humidity≤90%

Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
