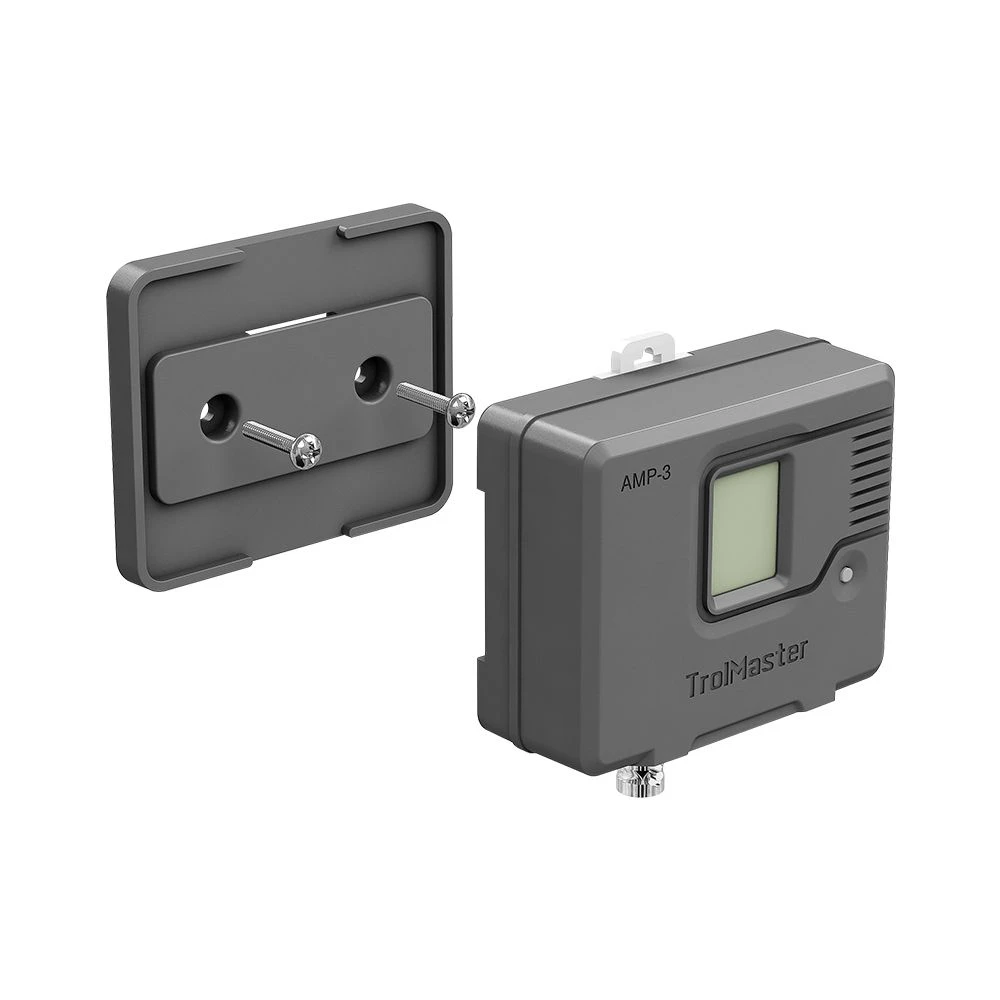

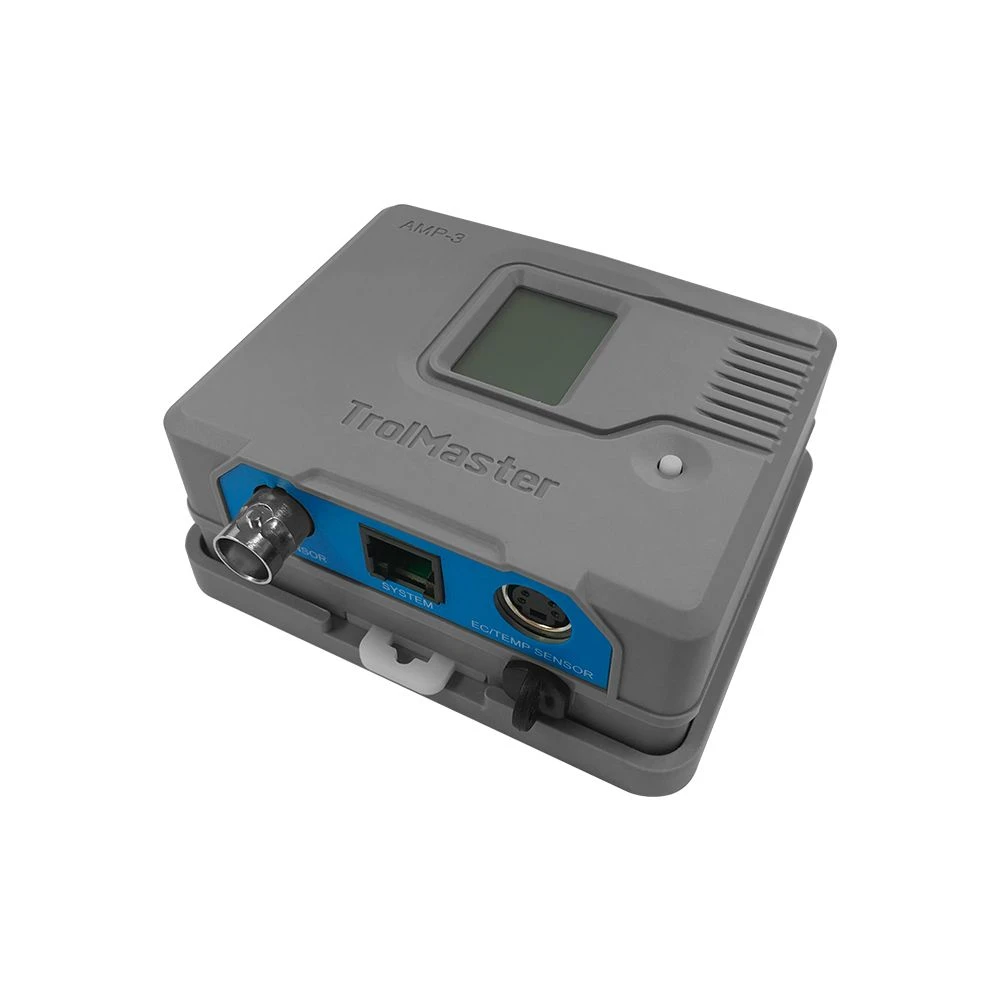

TrolMaster Aqua-X Sensor Board (AMP-3)
Original price was: $129.20.$90.44Current price is: $90.44.
The AMP-3 Sensor Board can be used as a bridge between the sensors (pH Sensor & EC/Temp Sensor) and the Aqua-X Pro Controller. It is specially designed for the Aqua-X Pro system. It can be connected to the main controller with a standard RJ12 cable. Multiple units can be connected into one system for multiple monitoring applications. The pH level, EC level and water temperature will be displayed on its LCD screen and the Aqua-X Pro master controller screen.
- Service that stands out, online and always timely.
- Shop with confidence, we guarantee quality.
- Effortless solutions, excellent customer care.
- The Quality Choice for Smart Shoppers
The AMP-3 Sensor Board is compatible with the
TrolMaster EC/Temp Sensor (PPH-1, PPH-2 and PPH -3)
and TrolMaster pH Sensor (PCT-1, PCT2 and PCT3).
Multiple AMP-3 sensor boards (maximum of 50) can be
connected to the NFS-2 Aqua-X Pro controller for multi-monitoring applications.

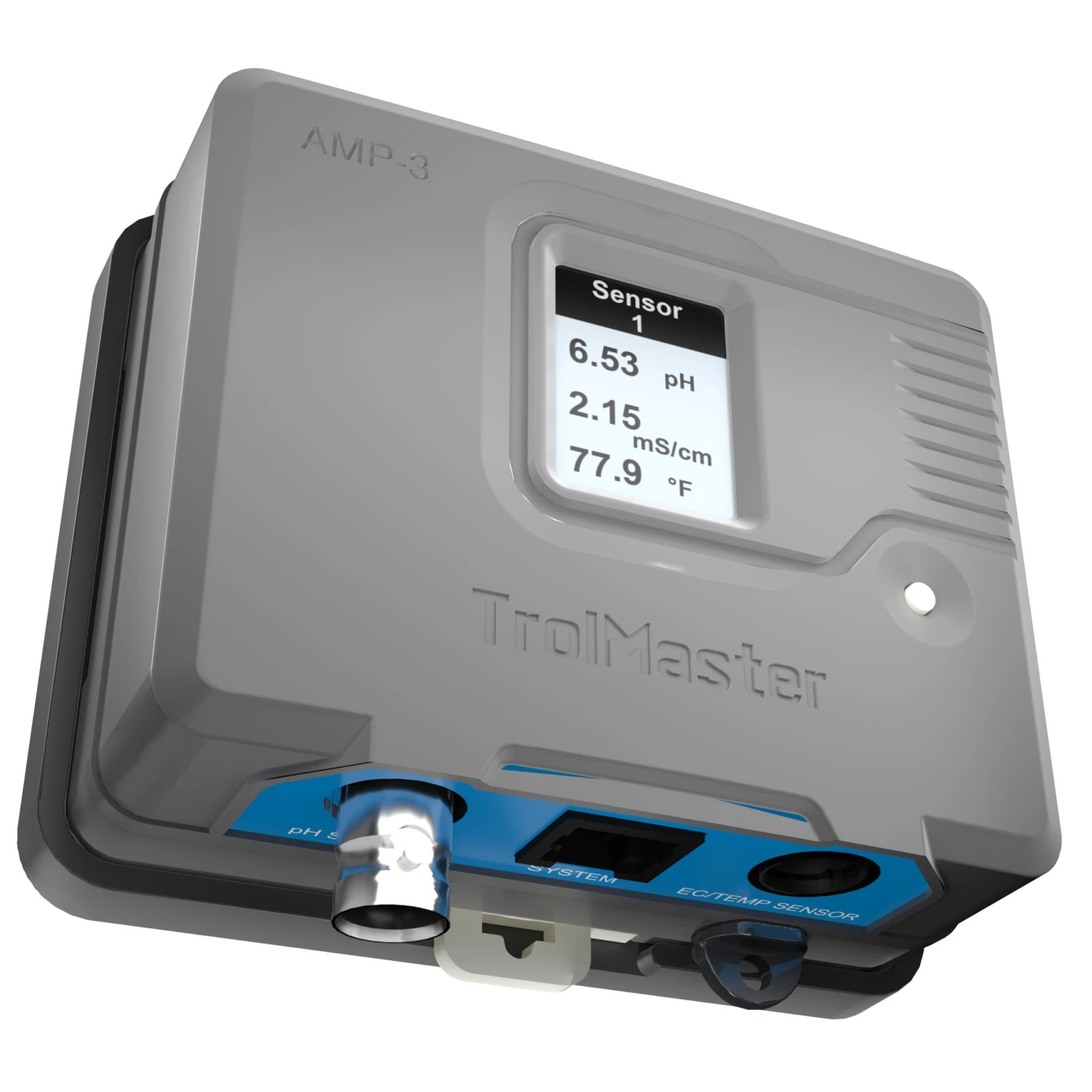

Connect the AMP-3 Sensor to the NFS-2 main controller using an RJ12 cable via “System”
terminal ; the pH Sensor via the BNC terminal; EC/TEMP terminal via Mini DIN terminal. Once
connected, pH level, EC level and water temperature will be displayed on both the AMP-3 LCD
screen and the Aqua-X Pro master controller screen.
Features
- 1. LCD Display for onsite monitoring
- 2. RJ12 connection for flexible installation
- 3. Addressing key for multiple units application
Package Contains
- 1x Sensor Board
- 1X 16 ft RJ12 Cable
- 1X 4ft RJ12 Cable
- 1X T-shaped Splitter
Specifications
- Working Environments: Temperature 32-122°F, Humidity≤90%
- Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
| SKU | 7498 |
|---|---|
| Manufacturer's Suggested Retail Price | $136.00 |
| Dimensional/Billable Weight (lbs) | 2.00 |
| Length (in.) | 3.5 |
| Width (in.) | 6.5 |
| Height (in.) | 3.5 |
| Free Shipping | FREE Ground Shipping! |
| Lead Time | Normally ships in 1-2 business days |
| Brand | TrolMaster |
| Vendor Item # | AMP-3 |
| UPC | 6970207971622 |
| Manufacturer Warranty | Yes |
