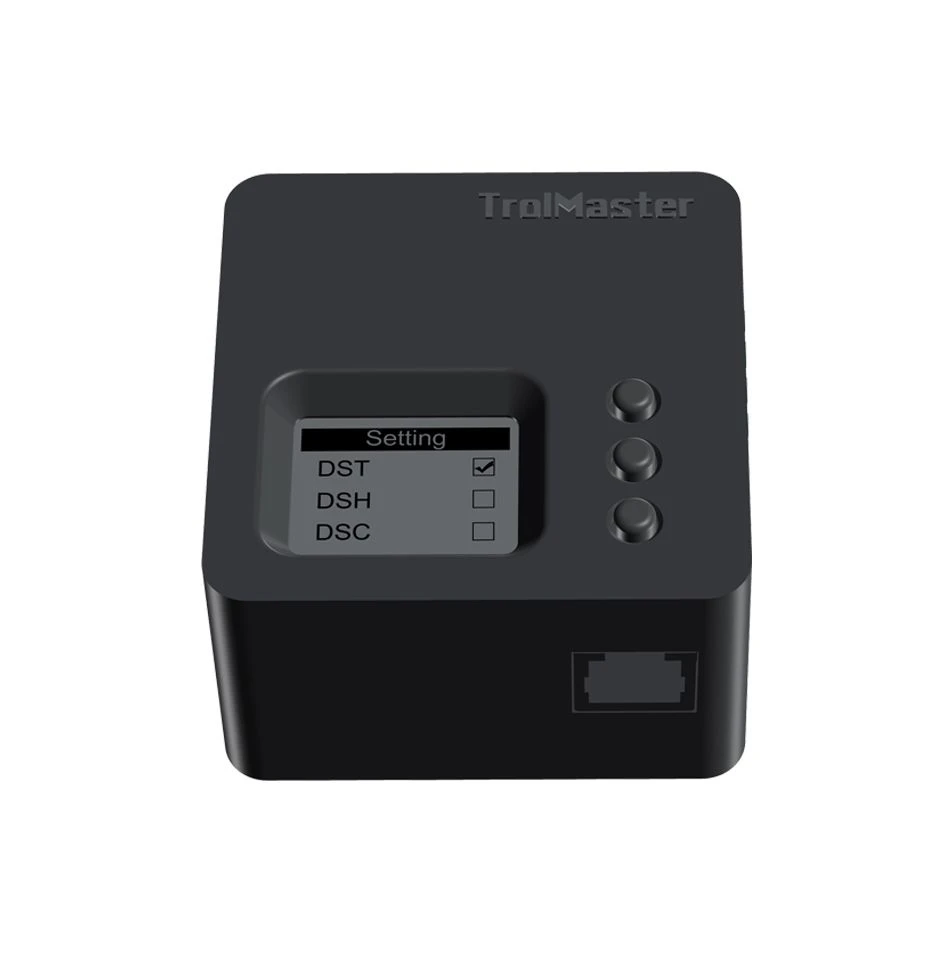

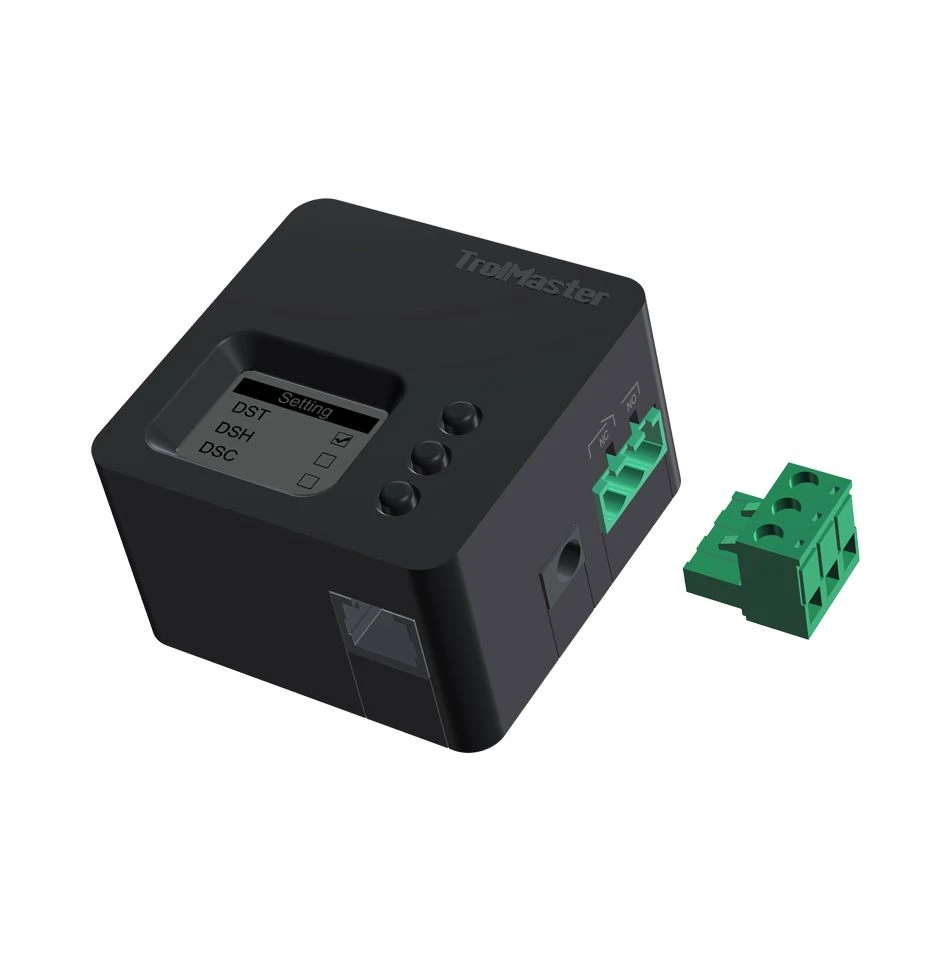

TrolMaster Hydro X / Carbon-X Dry Contact Station (DSD-1)

The Trolmaster DSD-1 Dry-contact module provides a simple and flexible solution to user’s who want to connect & control devices to the Hydro-X and Carbon-X using a “dry-contact” or relay to activate the device. Some equipment requires either normally open or normally closed contact closure in order to activate the equipment. The DSD-1 is the product that you need to control those types of devices. *

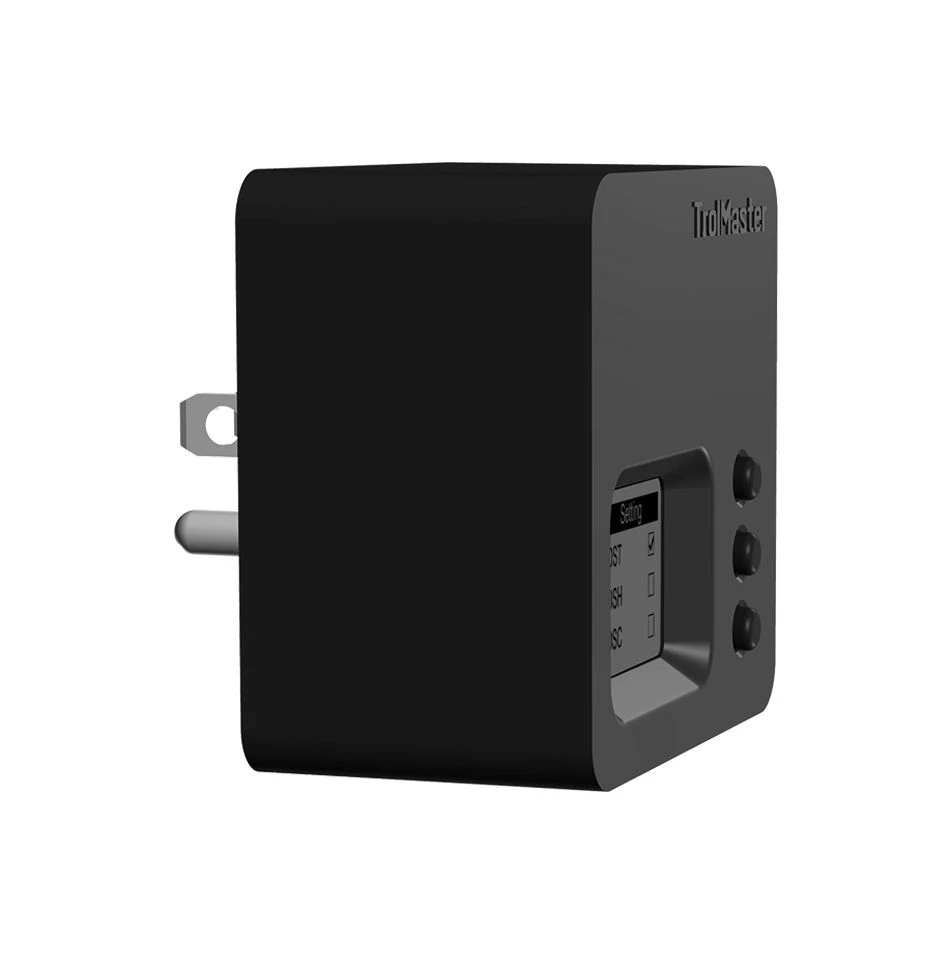

The DSD-1 plugs into a standard Nema 120 volt 15/20-amp power outlet to provide operating power to the DSD-1 circuitry. Then the user can use any voltage (up to 240 volts @ 10-amps) to connect their control voltage from their equipment to the common, normally open and/or normally closed contacts on the DSD-1. Almost any device that requires a “dry-contact” or relay to activate will work with the DSD-1.

The DSD-1 can be configured to work as the other Trolmaster power modules work. The DSD-1 connects into the “devices” line on the Hydro-X and Carbon-X and can be set to control an almost infinite number and types of devices such as:

• Lighting contactors
• Light Deprivation curtains
• Pump contactors
• Temperature devices
• Humidity devices
• CO2 devices

* Consult Trolmaster for questions concerning your particular device

Features:

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X and Carbon-X
• Multiple purposes assigment
• Plug & Play

Includes:

• 1 x Dry Contact Station DSD-1
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specifications:

Input Voltage: 100~240VAC, 50/60Hz

Output Current: 10A

Output Voltage: 100~240VAC, 50/60Hz

Working Environment: Temperature 32-122°F, Humidity≤90%

Packaging Dimensions: 85mm x 80mm x 90mm
