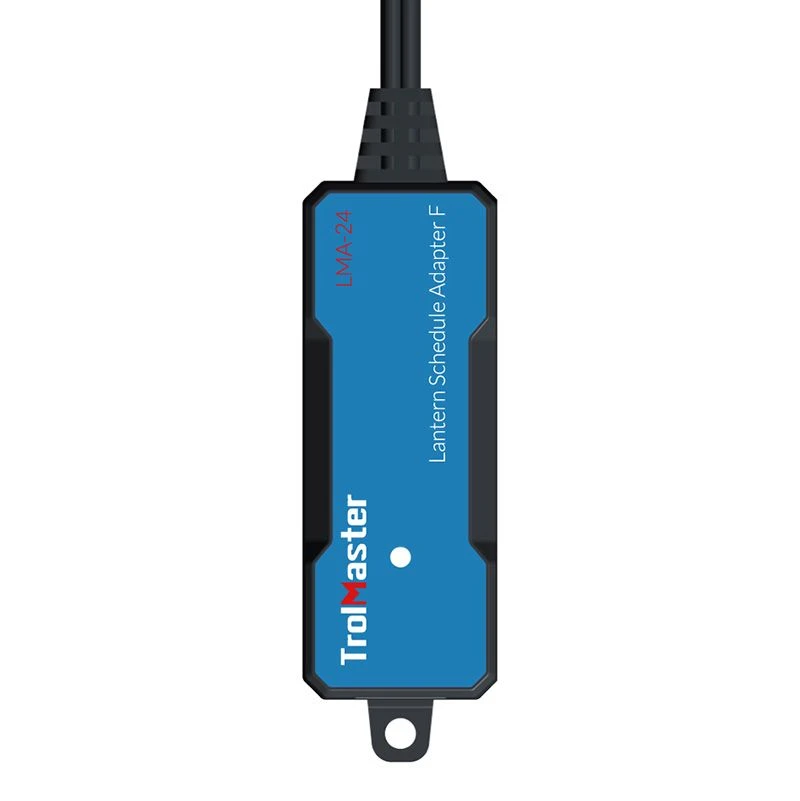

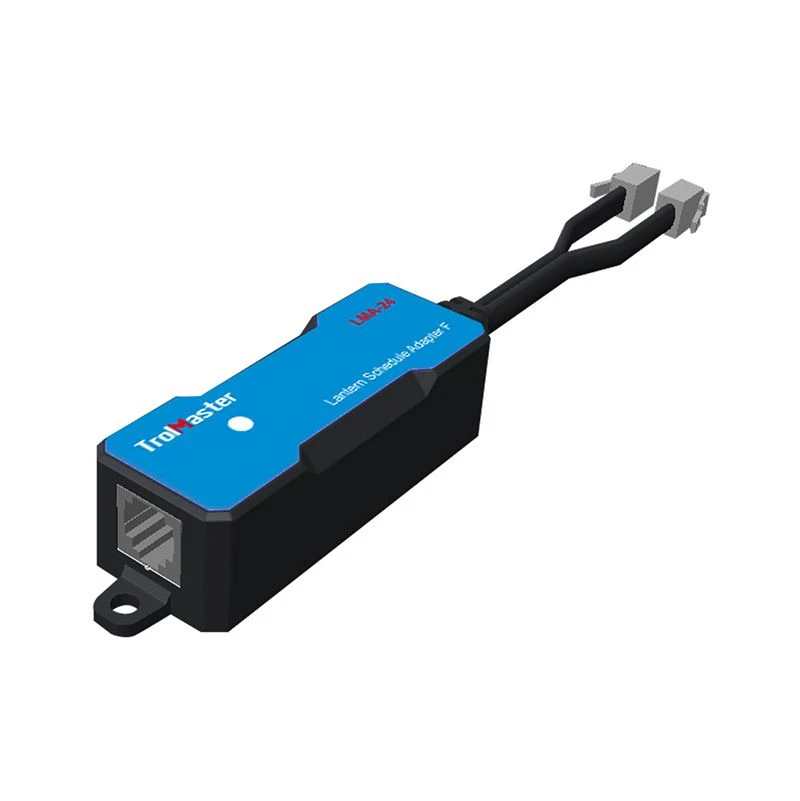

TrolMaster Hydro-X Lantern Schedule Adaptor (LMA-24)

TrolMaster’s Hydro-x system can control most of the supplemental lighting fixtures sold today. Most light manufacturers provide the ability to control their lighting systems using what known as a low-volt control. That low-volt control can take many forms and communication protocols. TrolMaster makes several types of lighting adapters (LMA units) that allow the Hydro-x to control lights using their low-volt control option.

Lantern lighting schedule is a lighting routine for vegging plant that you could find in any college grade horticulture book. It is as follows 12 hours lights on, 5.5 lights off, 1-hour lights on, 5.5 lights off, and repeat schedule. The 1 hour on in between off period fools the plants that stay in vegetative growth state.

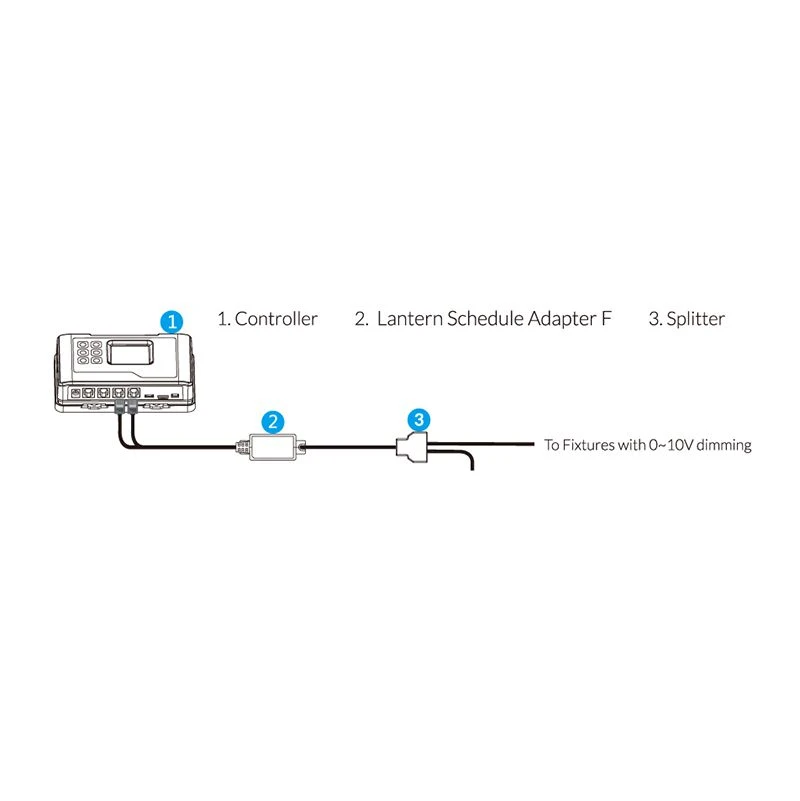

This LMA-24 lighting adapter is specially designed to use both two channels on the Hydro-X system to creat a lantern schedual control for any lights with 0-10V protocal.

Features:

• LED Power Indicator
• Convert Digital Signal to Analog Signal
• Seamless Connection with Hydro-X with RJ12 Cable
• Plug & Play

Specifications:

Output Voltage: 0~11.5V

Maximum Current: 0.2A

Working Environments: Temperature 32-122°F, Humidity≤90%

Package Dimensions: 160mm(L) x 86mm(W) x 86mm(H)

G.W. per pack: 0.05kgs
