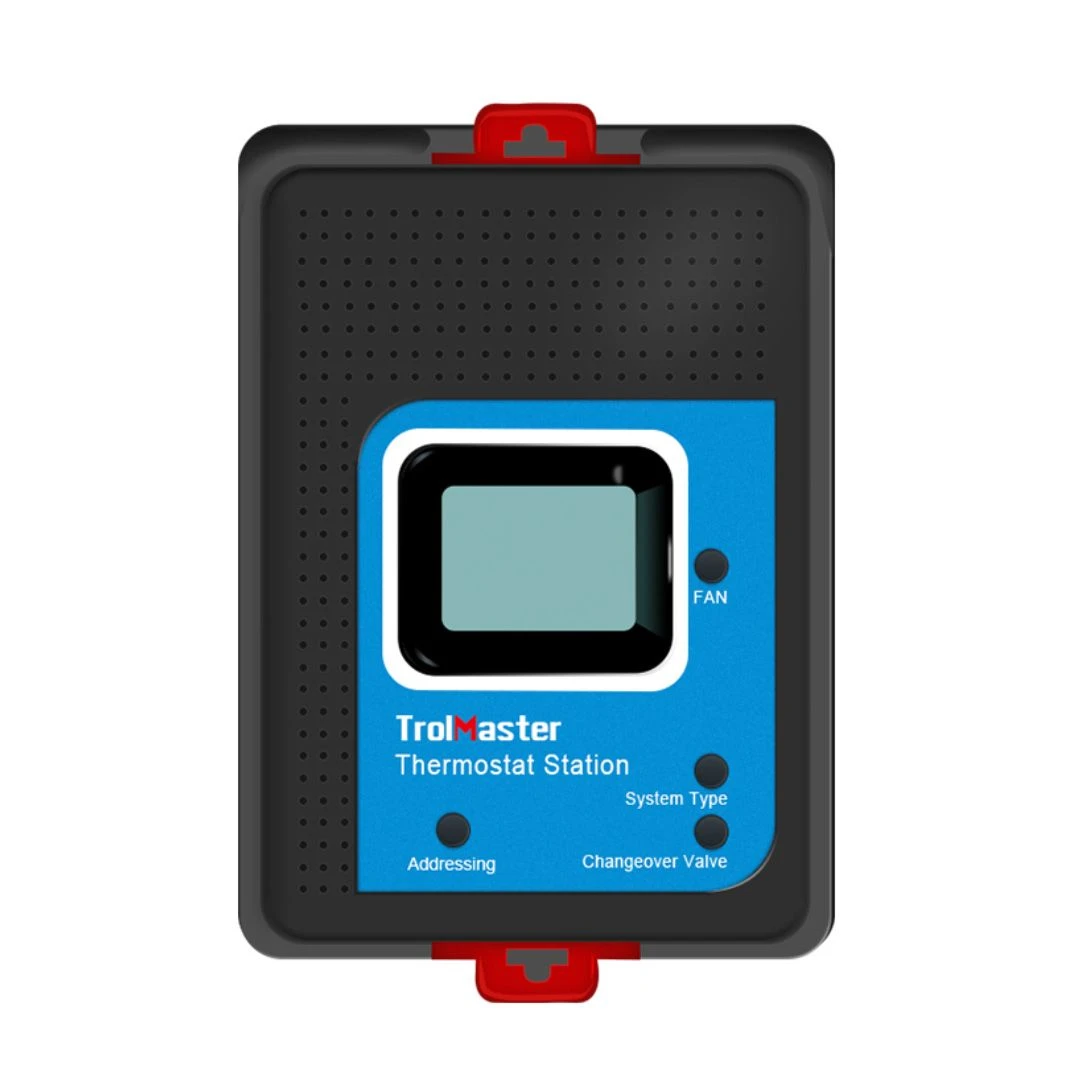

TrolMaster Hydro-X Thermostat Station (TS-1)

TS-2 Thermostat Station is specifically designed to replace the traditional thermostat to control four system types of equipments (Heat/Cool, Cool only, Heat only, Heat pump). It will control your four system equipments by Day/Night setpoint base on the photocell status.

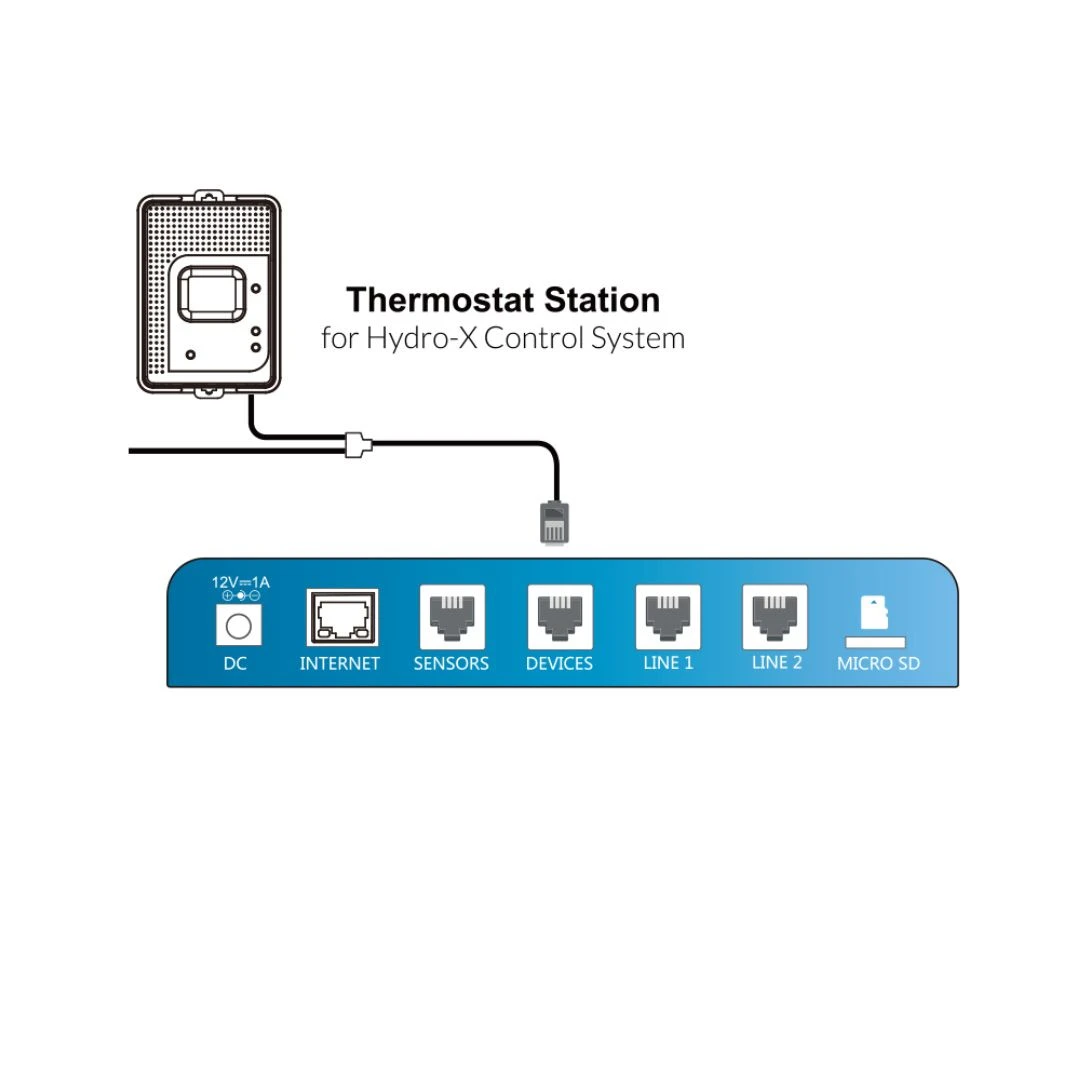

Connect the TS-2 to where your thermostat is on the wall using preexisting wires, now you can use the TS-2 in conjunction with the Hydro-X to control heating & cooling equipments.

Features:

• LCD Display, Easy Operation
• Seamless Connection with Hydro-X
• Micro-SD for Firmware Upgrade
• Address Assignment
• Plug & Play

Includes:

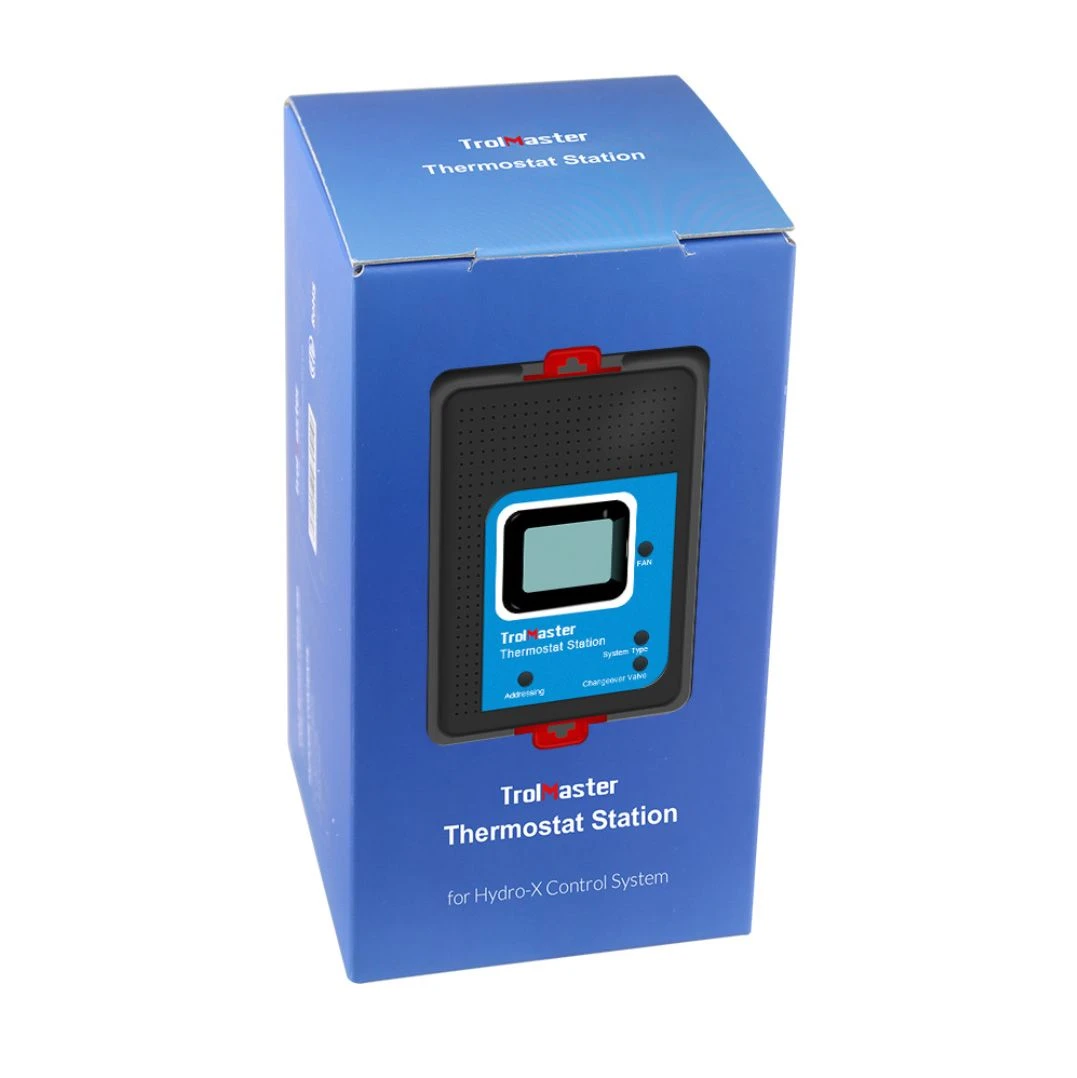

• 1 x Thermostat Station (TS-2)
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specifications:
Output Voltage: 24V
Maximum Current: 1A
Working Environment: Temperature 32-122°F, Humidity≤90%
Packaging Dimensions: 160mm(L) x 86mm(W) x 86mm(H)
